SPECIFICATIONS

Maximum Current: 60A

is_customized: Yes

Certification: CE

Application: Charger Controller

Application: Voltage Controller

Application: Lighting Controller

Application: Solar System Controller

Application: Solar Working Station

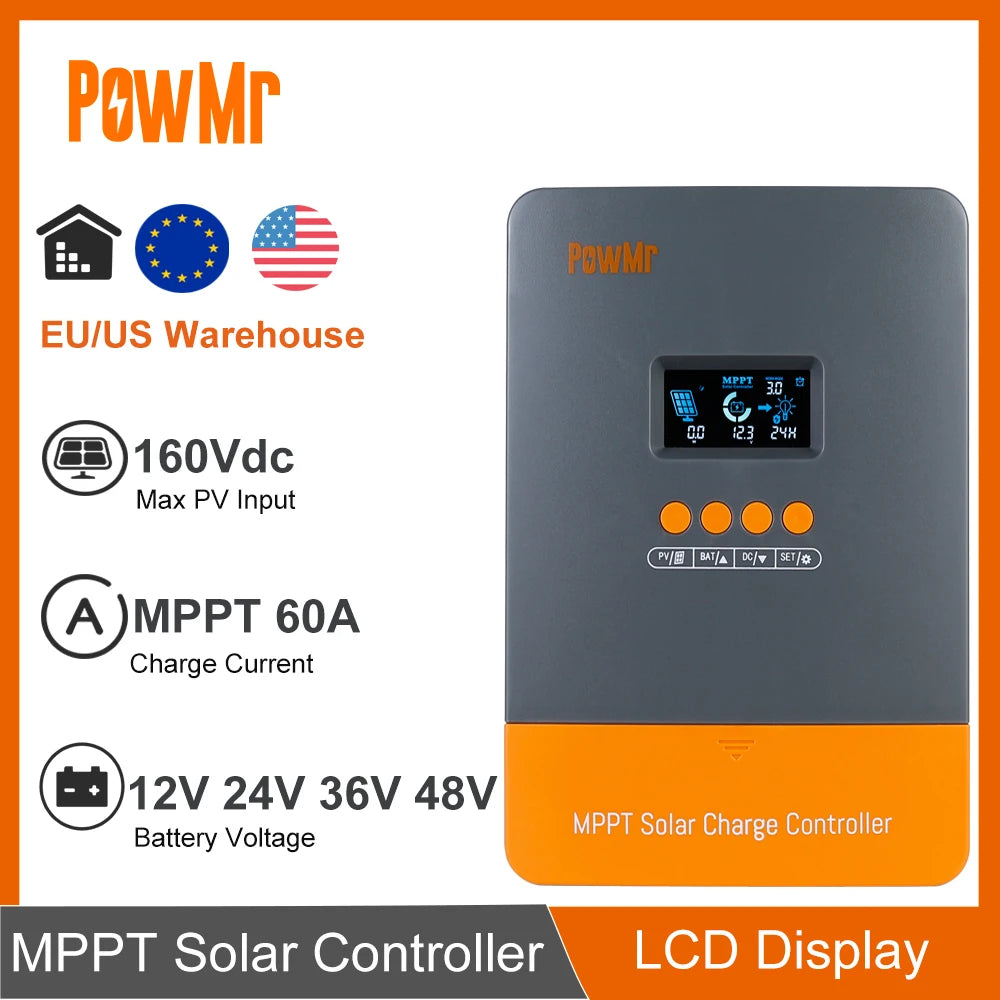

PowMr MPPT Solar Charge Controller 60A 12V/24V/36V/48V Auto LCD Display Solar Panel Regulator for Lithium Battery & Connector



Product Features

M6-PRO Support one-key restore function

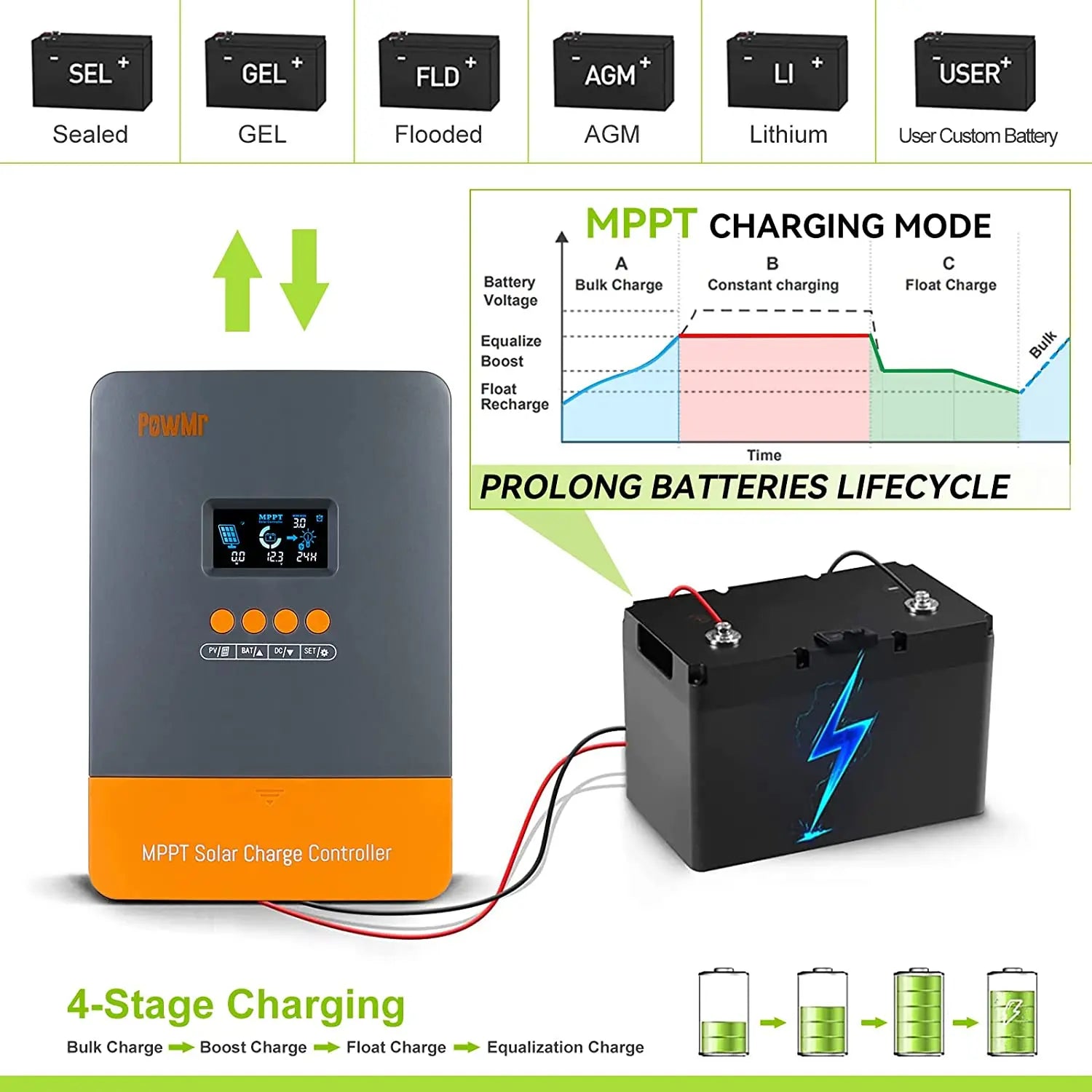

●【60A MPPT CHARGING CONTROLLER】 4-stage battery charging algorithm for a rapid, efficient , safe charging(Bulk Charge, Boost Charge, Float Charge,and Equalization), 60amp Rate Charging current.



●【WIDE RANGE SOLAR VOLTAGE/POWER SUPPORT】Controller support High PV Input Power/voltage. Controller can accept Solar voltage up to 160V. When battery is 12V system: Suggest Solar power 720W, suggest range:DC20V~DC80V；1440W 105V when 24V; 2100W 150 when 36V; 2800W 150v when 48V.



●【12V/24V/36V/48V BATTERY SUPPORT】Negative grounding design controller more safe, controller Compatible with a variety of batteries(lead-acid and lithium, User customize); Sealed, Gel, Flooded and LI (LFP) battery charging parameter pre-set, other battery can be customize charging parameter according your need.



●【 0 layer MPPT charge controller】Easy to know controller's working state and process in one glance

●【FULL CHARGING PROTECTIONS】Short Circuit/Overcurrent/Reverse Polarity,etc.protections; Very detail LCD screen and 4 buttons make this solar controller very simple to use. Fast service support and Simple and detail wiring instruction avaiable.



PowMr Solar Charge Controller 60AMP

Model	POW-M60-PRO MPPT 60amp Solar Charge controller (MPPT charge controller)
Controller Nominal system	12V/24V/36V/48V Auto Recognition
Controller Battery support	12V/24V/36V/48V lead acid/lithium battery
Rated Battery Current	60A
Max. Capacitive load capacity	10000µF
Max Solar Input Voltage	160 VDC (25°C), 145VDC (-25°C)



Max. Solar Input Power/voltage	2800W/150V
Self-Consumption	0.7W - 1.2W
Conversion efficiency	≤ 98%
MPPT tracking efficiency	>99%
Temp. Compensation	-3mV/°C/2V (default)
Package includes	1*60amp MPPT charge controller





Product Overview





12V/24V/36V/48V BATTERY SUPPORT, Compatible with a variety of batteries(lead-acid and lithium, User customize); Sealed, Gel, Flooded and LI (LFP) battery charging parameter pre-set

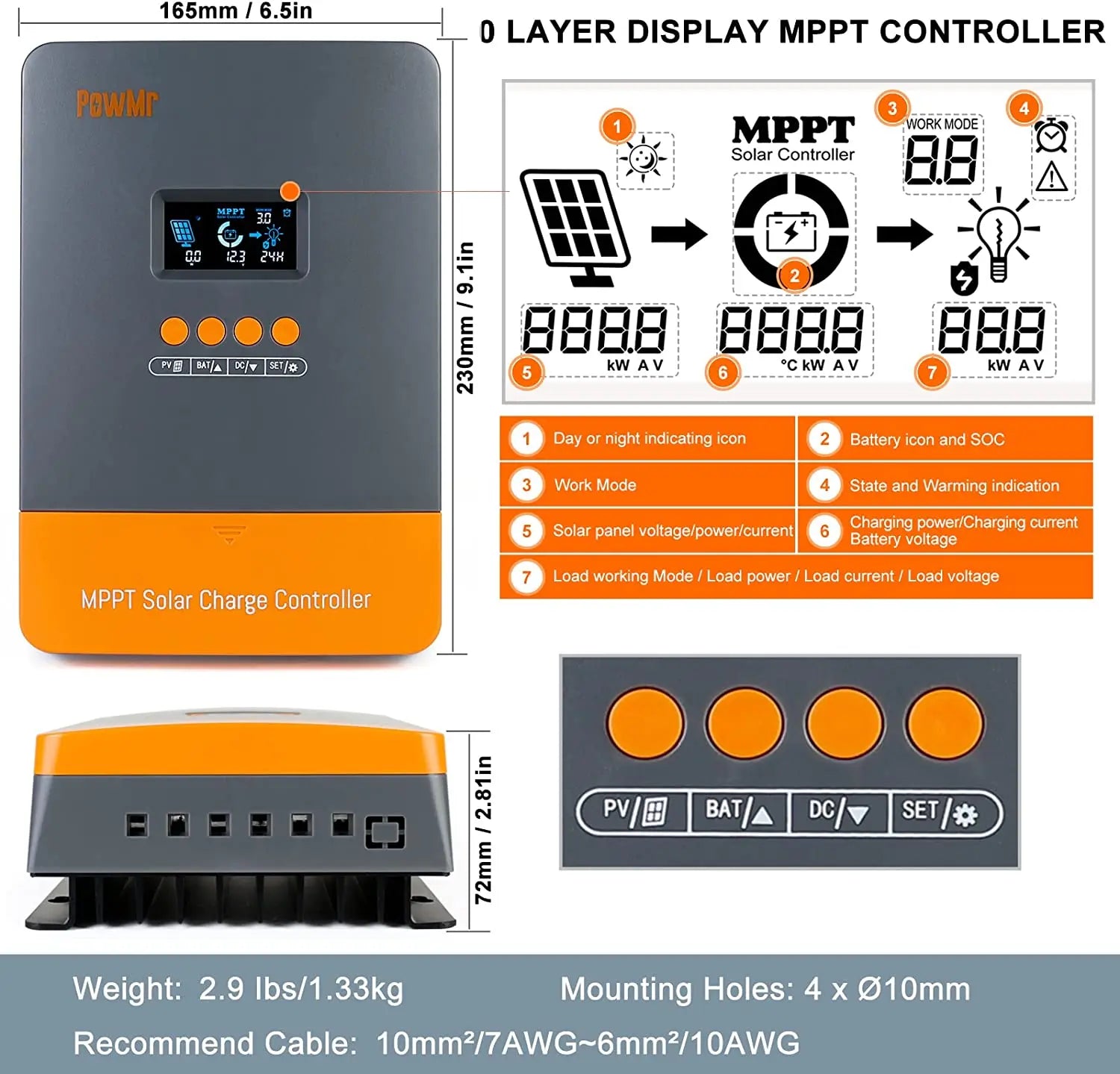

0 layer MPPT charge controller Easy to know controller's working state and process in one glance

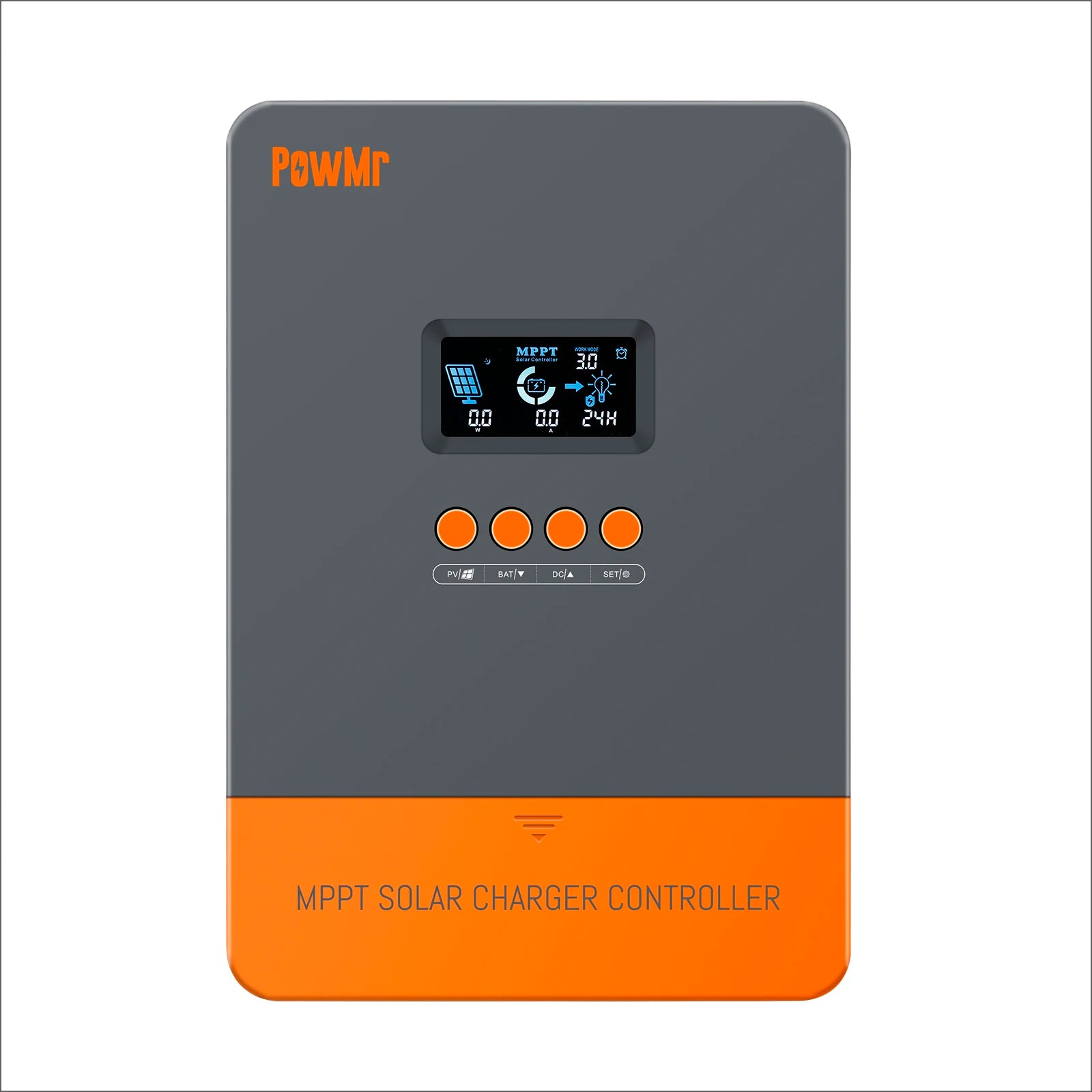

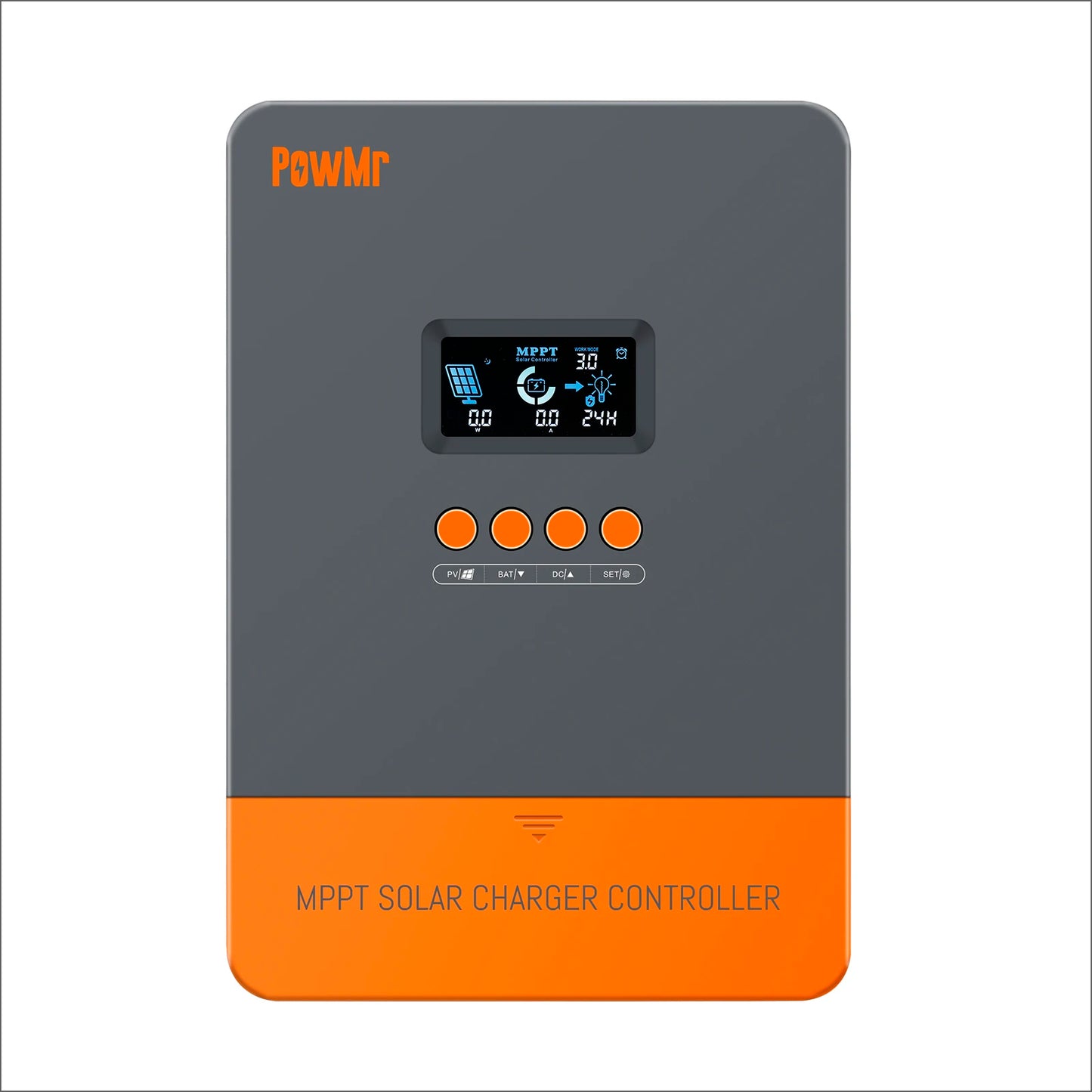

Multifunctional Backlight LCD display for displaying system operation information, customizable parameters, and error codes.
