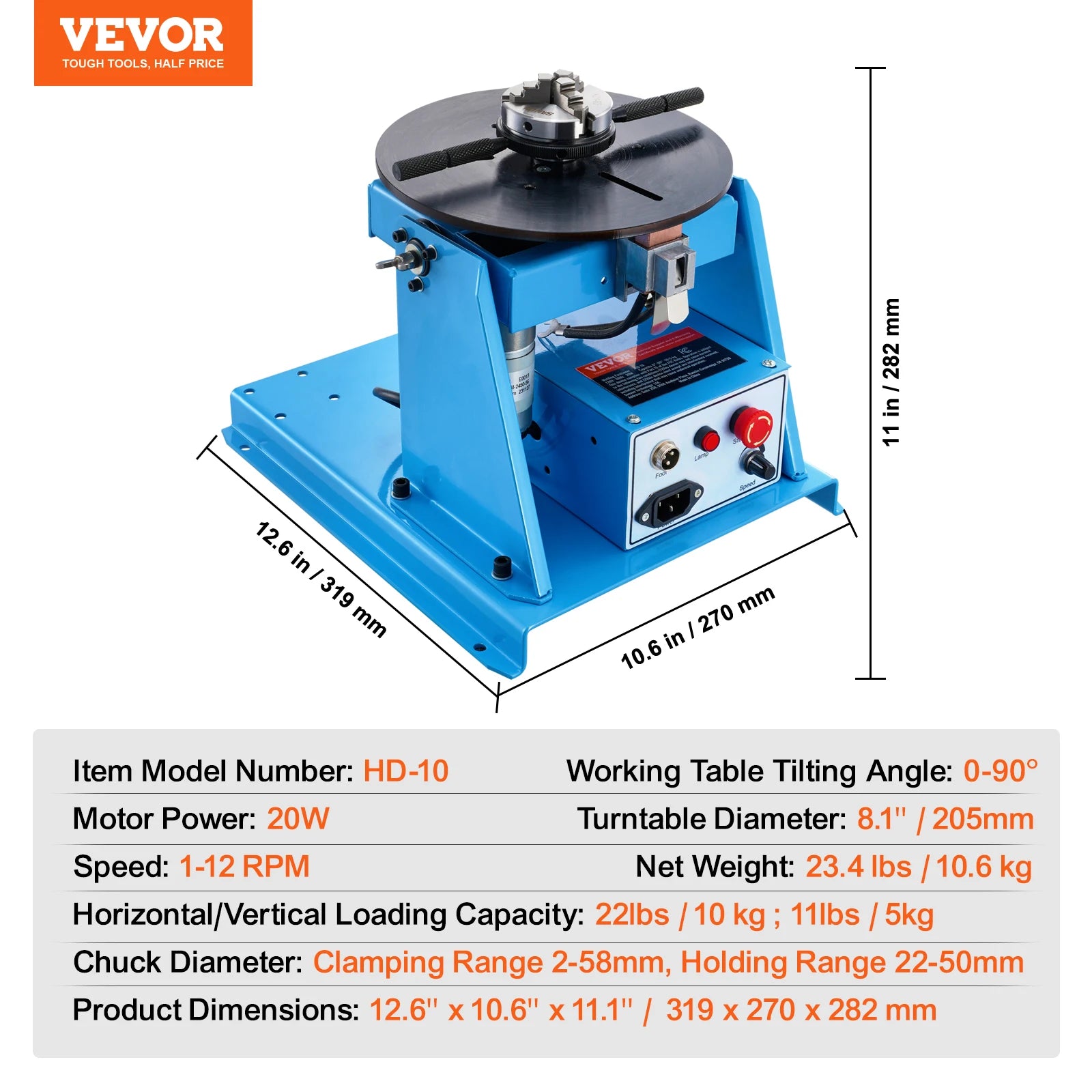

SPECIFICATIONS

Certification: CE

Item Type: Rotary Welding Positioner

Chuck Diameter: Clamping Range 2-58mm, Holding Range 22-50mm

Motor Power: 20W

Working Table Tilting Angle: 0-90°

Turntable Diameter: 8.1'' / 205mm

Master Welding Projects with Precision and Ease

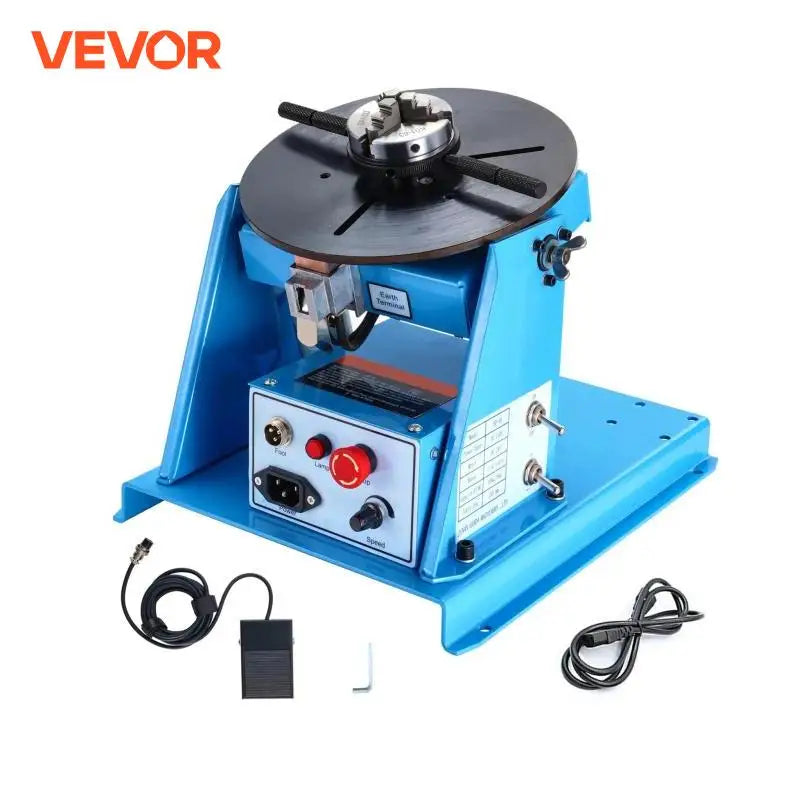

VEVOR rotary welding positioner turntable is the perfect companion for achieving flawless welding. It makes welding easy and precise, with 0-90° tiltable worktable, 1 to 12rpm stepless speed control, and K01-63 three-jaw chuck. Choose VEVOR's positioner makes welding effortless and accurate.

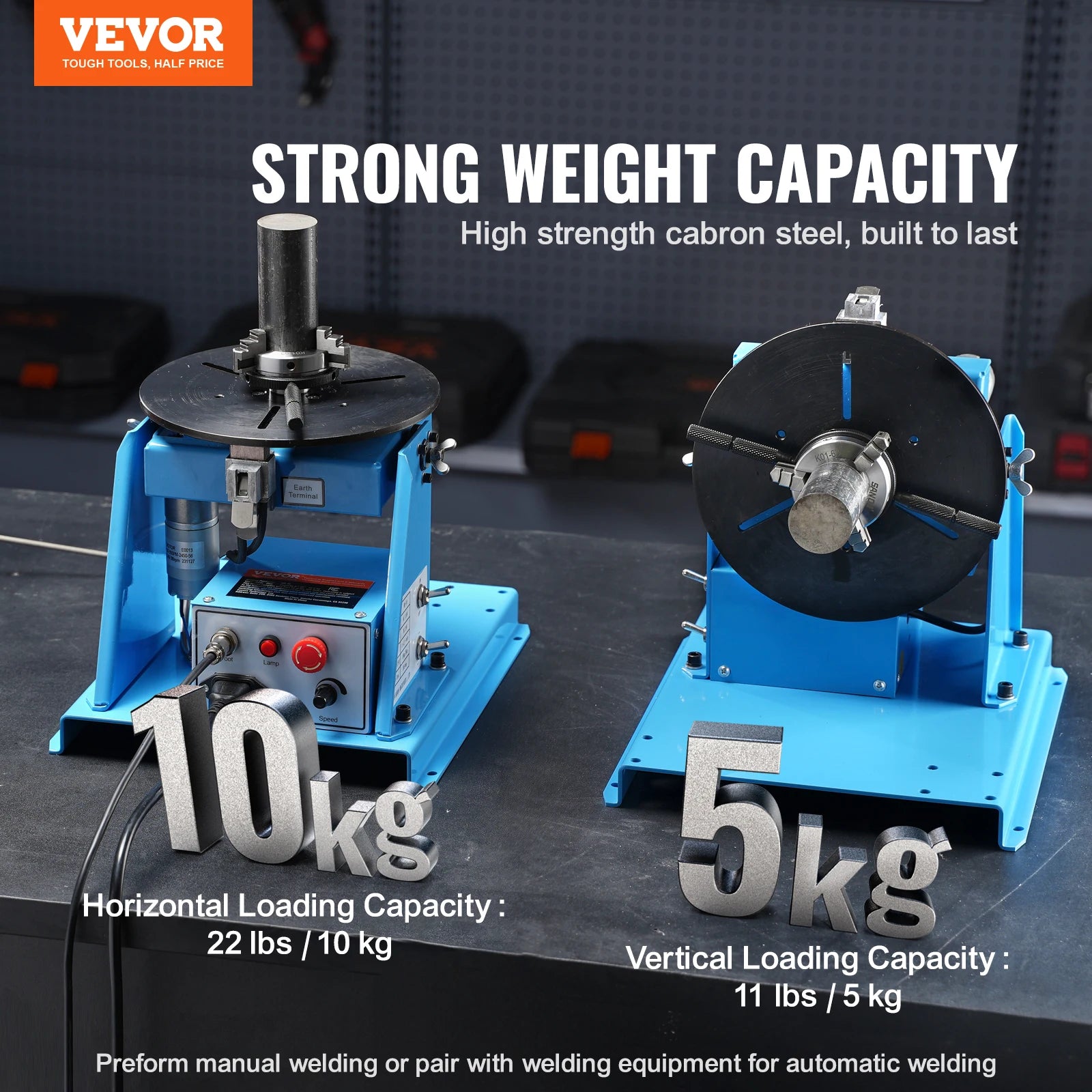

Constructed with high-strength carbon steel, our welding positioner turntable table boasts exceptional 11 lbs (vertical) or 22 lbs (horizontal) load-bearing capacities. Robust and durable structure can handle various welding tasks while offering corrosion resistance for long-term use.

Our positioner turntable machine features a worm gear turning structure with a self-locking function, ensuring precise and stable positioning of the welding workpiece. The butterfly bolt can securely fix the worktable at 0-90° desired angle for added convenience.

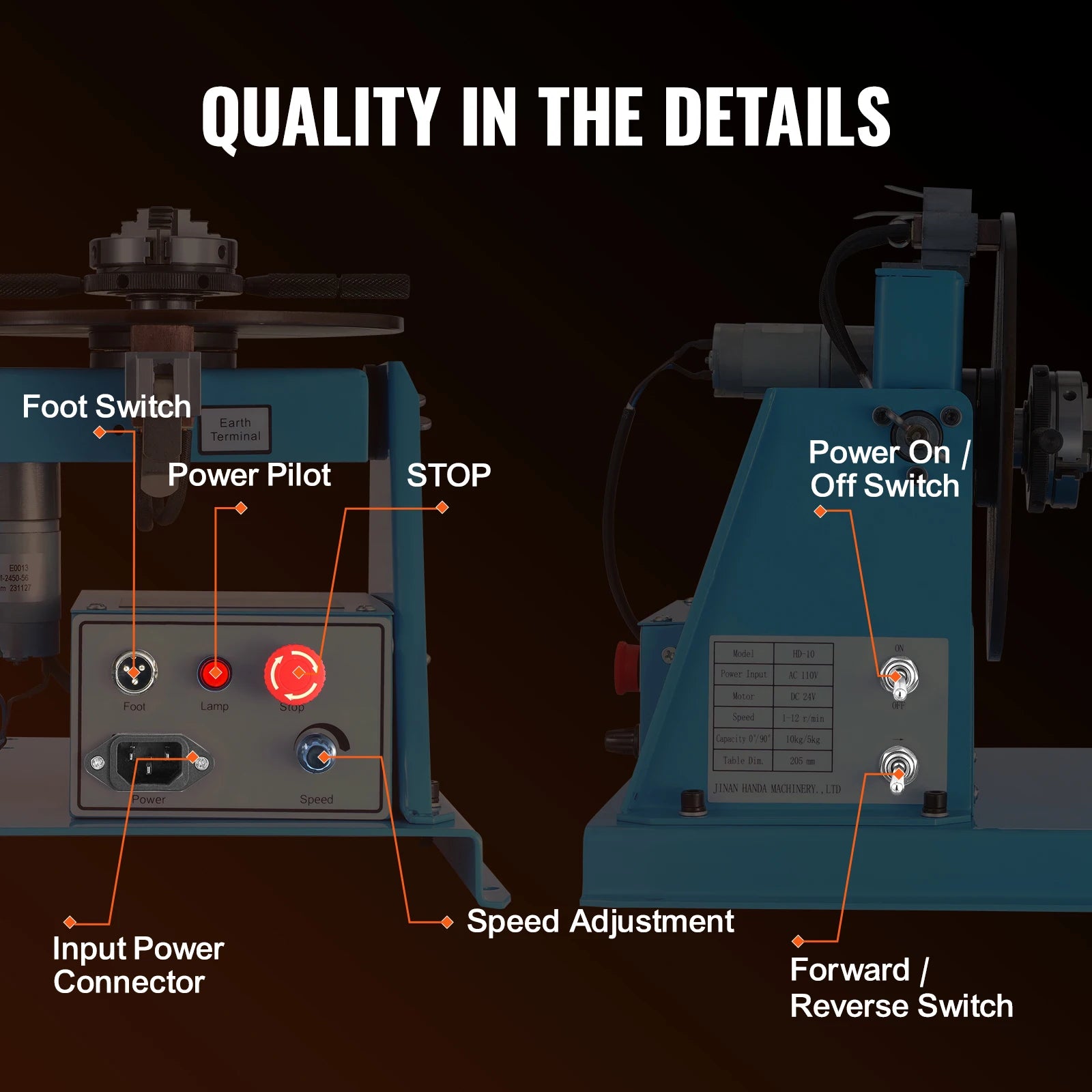

Control the worktable's 360° rotation effortlessly with the foot pedal switch, providing flexibility during welding. The control knob allows for stepless speed adjustment (1-12rpm), catering to the requirements of different welding tasks and ensuring a smooth welding process.

Our welding positioner is suitable for a variety of welding tasks, ideal for welding small workpieces, such as small metal structure welding, small pipe welding, parts fabrication welding, as well as art and manual welding, greatly enhancing welding accuracy and efficiency.

Features & Details

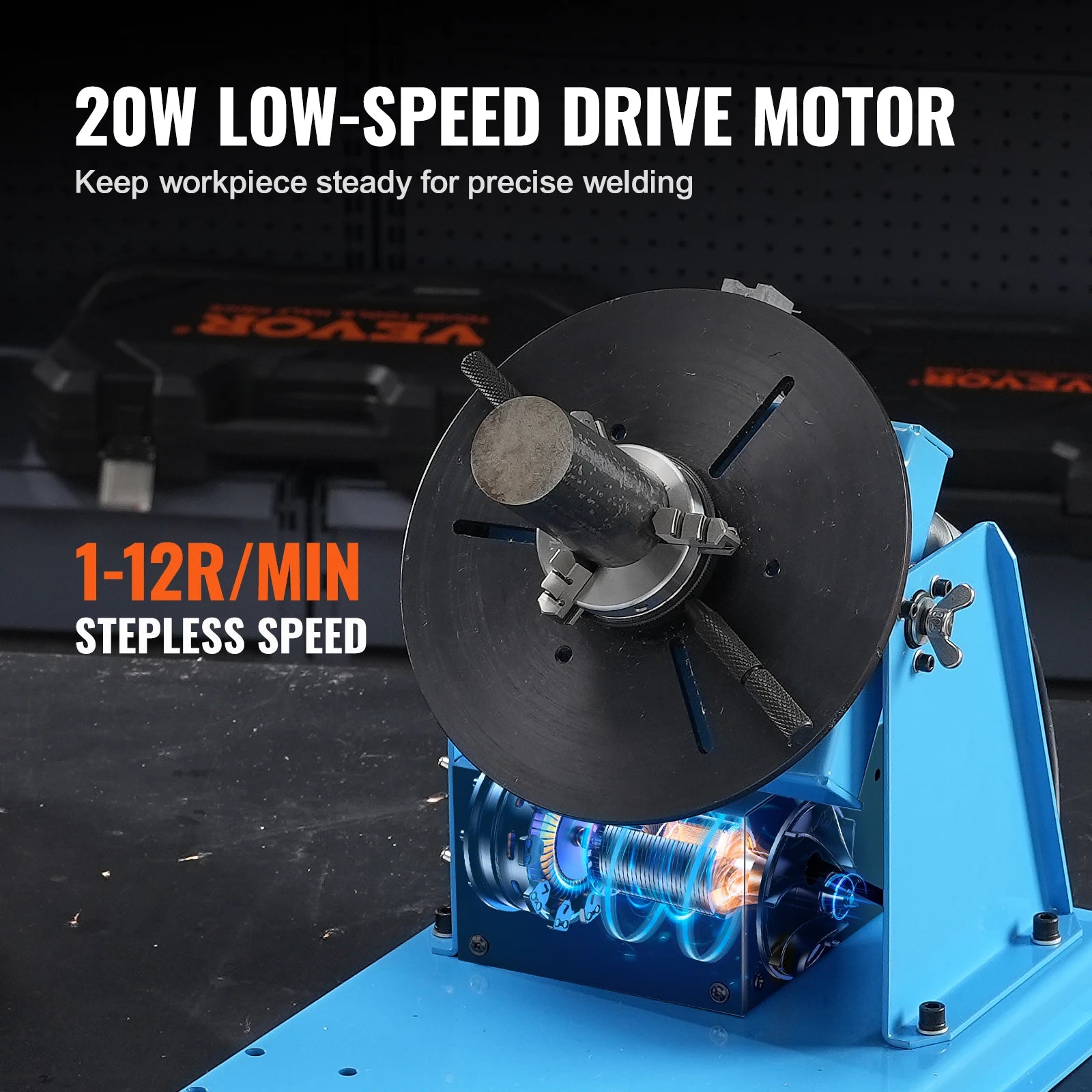

• Smooth Rotation: VEVOR rotary welding positioner boasts 20W high quality motor that runs at 1-12 rpm low speed for stable operation. With a load capacity of up to 11lbs/5 Kg (vertical) or 22lbs/10 Kg (horizontal), it offers excellent stability and supports efficient, precise welding.

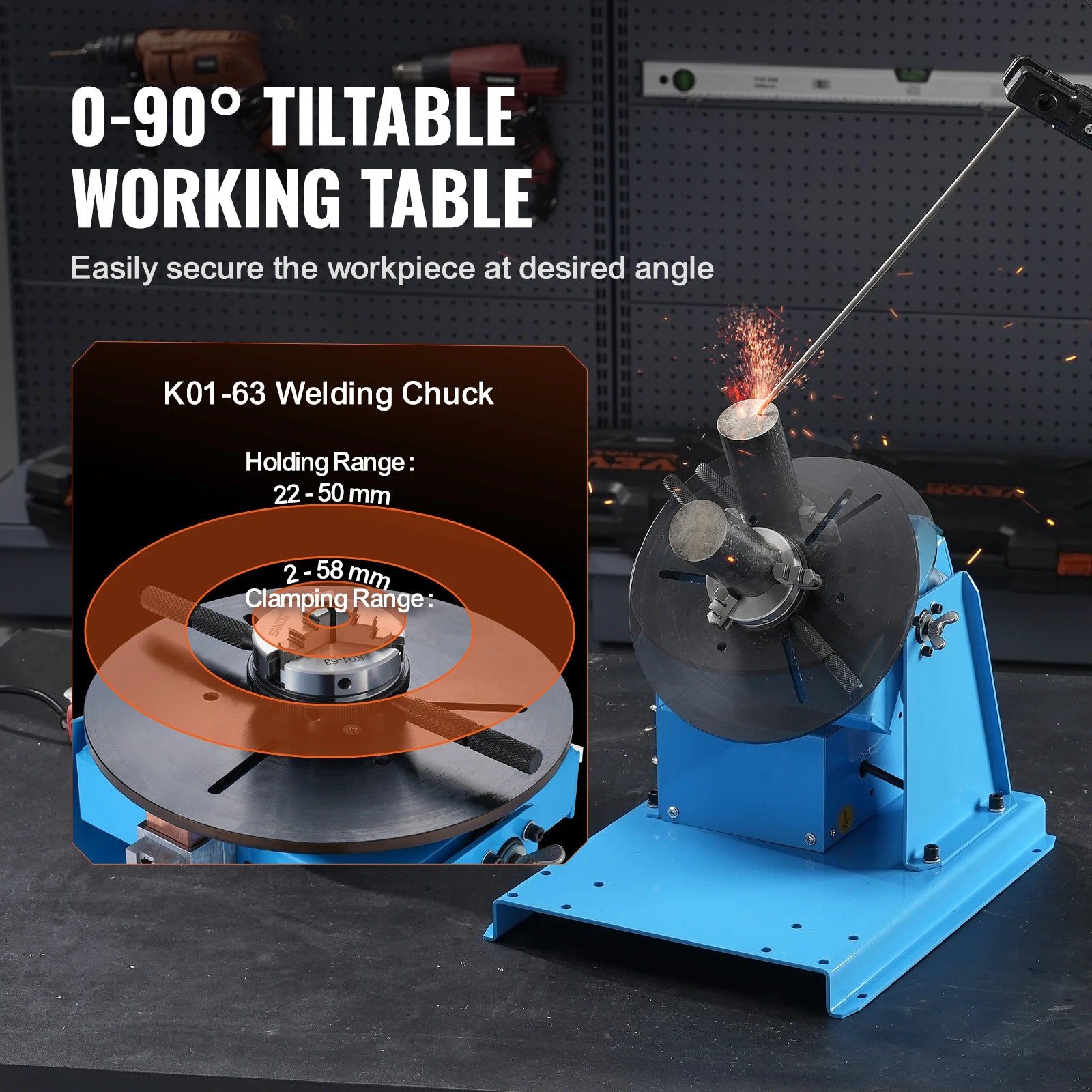

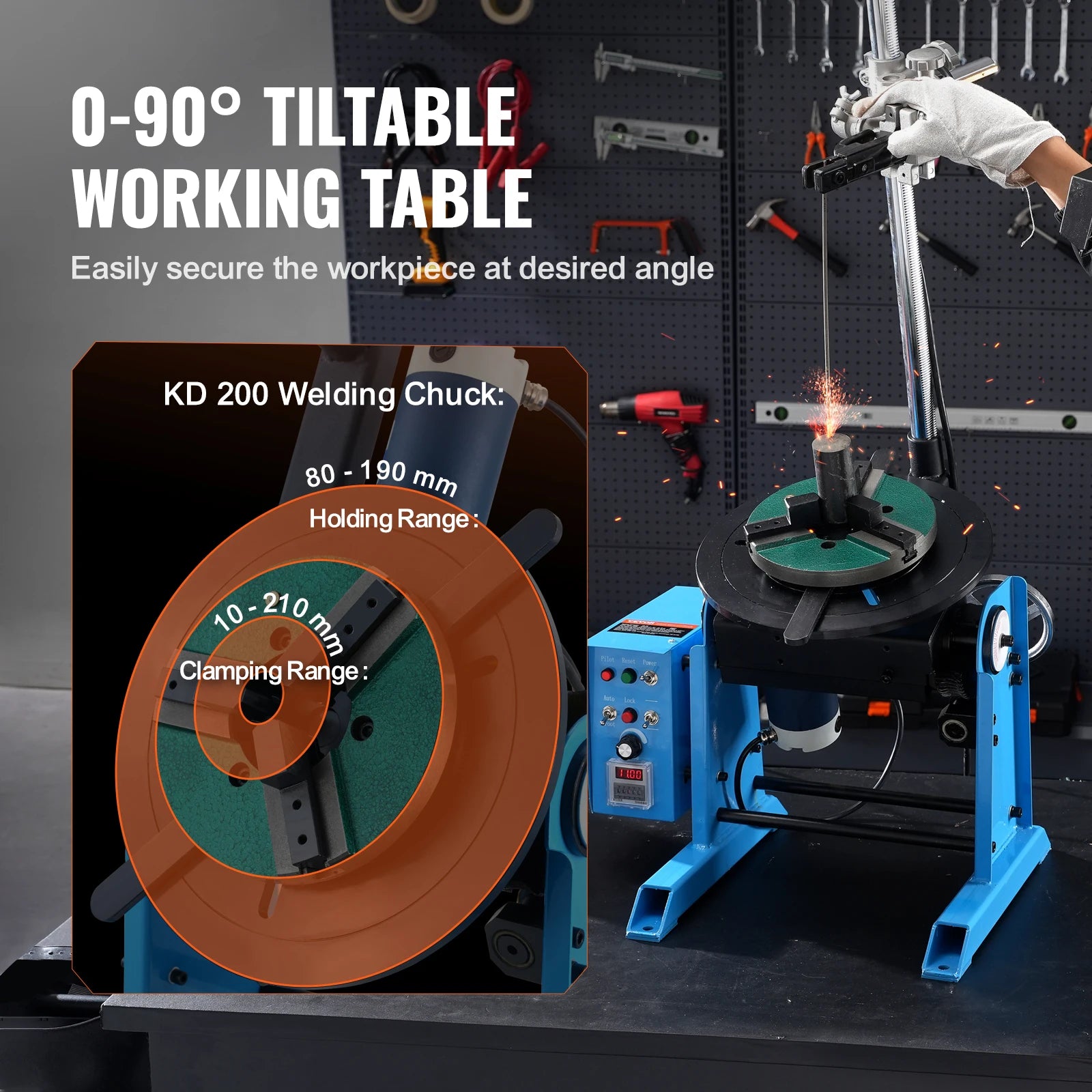

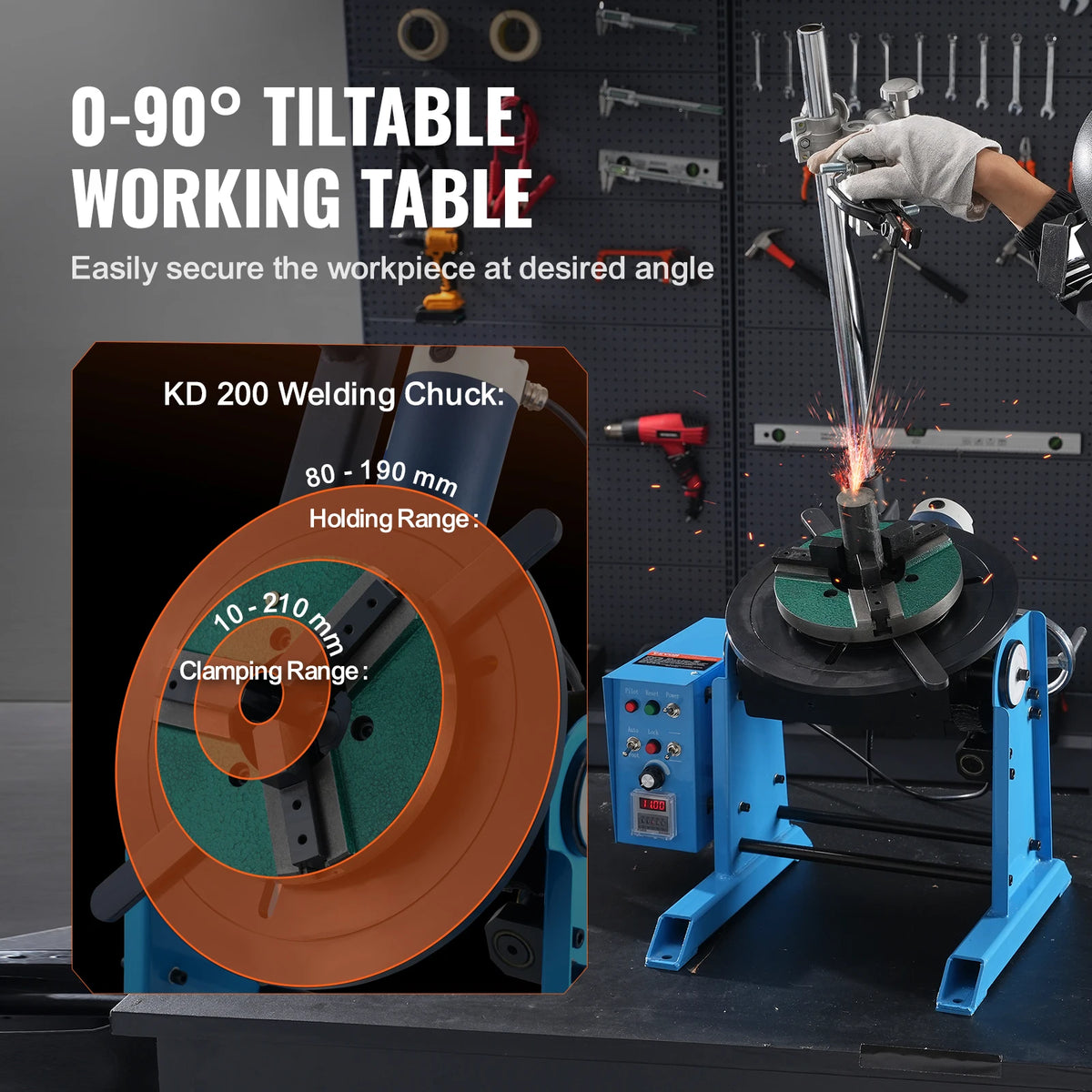

• 0-90° Tiltable Worktable: Our welding positioner turntable table can be tilted from 0-90° and securely fixed at desired angle with the butterfly bolt. The worm gear turning structure with self-locking function can accurately position and maintain the correct location of welding workpiece.

• Precise & Stable Positioning: Equipped with a 205mm K01-63 three-jaw chuck, featuring a clamping range of 2-58mm and a supporting range of 22-50mm, it effectively prevents the weldment pieces from moving and falling, thus significantly enhancing welding accuracy.

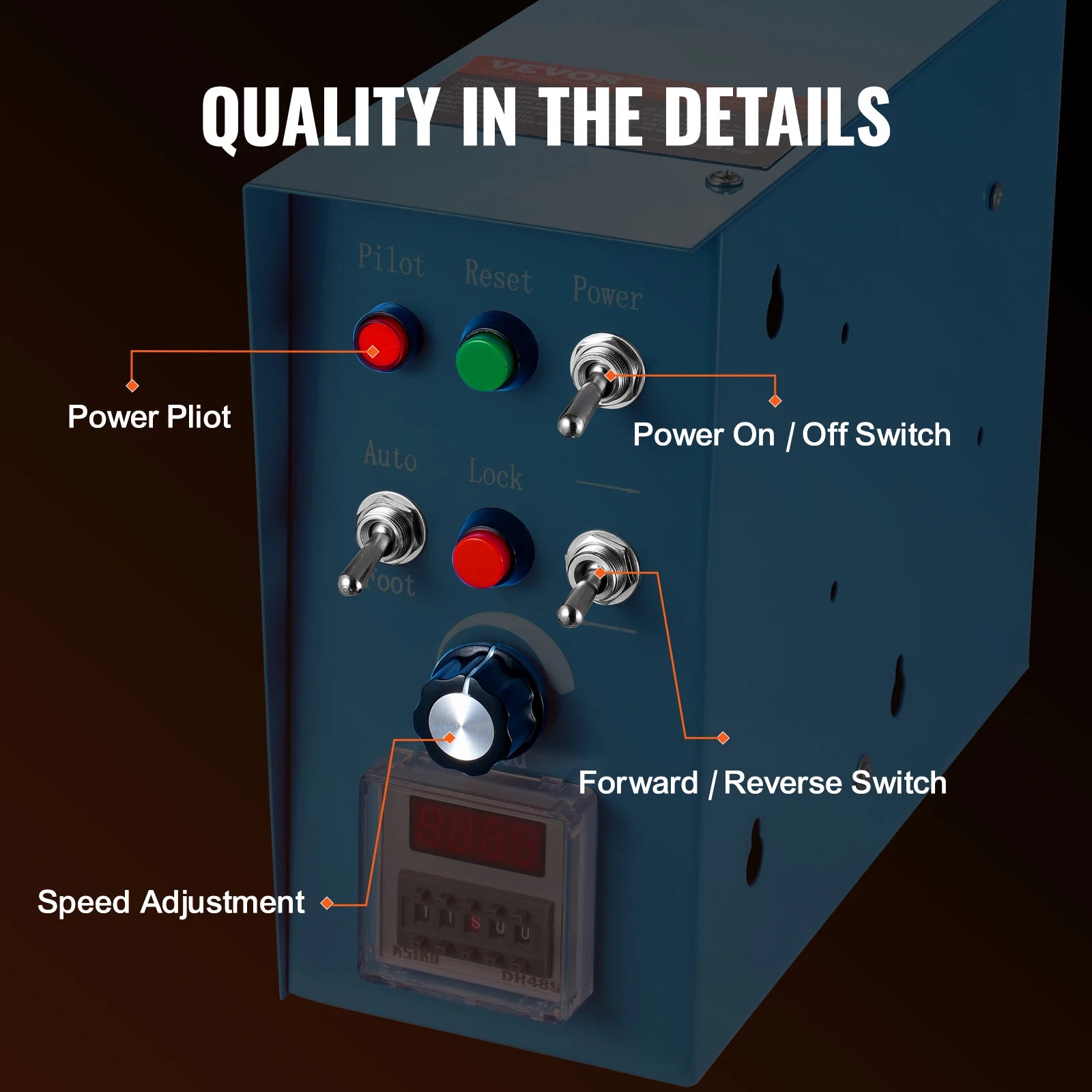

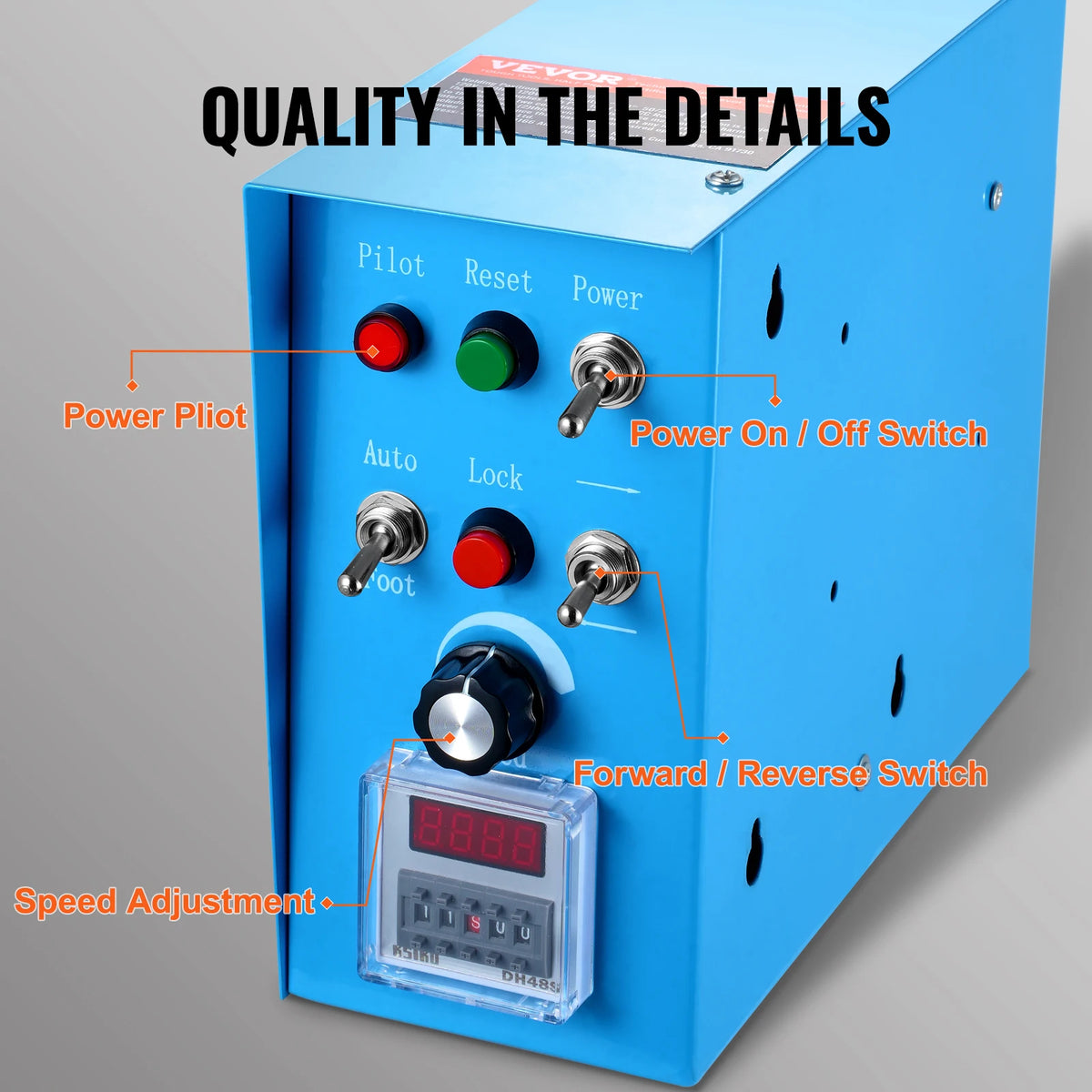

• Stepless Speed Control: The welder positioning turntable table offers 1-12 rpm stepless speed adjustment, and you can adjust the rotation speed with the speed adjustment knob. A convenient foot pedal switch also allows for easy control of table's 360 degrees rotation.

• Wide Applications: Our positioning turntable is versatile for cutting, grinding, assembly, and testing. It can be fixed on the workbench or specific tooling for manual welding or paired with welding equipment for automatic welding. Elevate welding efficiency and precision with VEVOR!
