SPECIFICATIONS



External Testing Certification: ce

Hardware Version: Car Battery Tester

Special Features: Battery Diagnostic ToolSoftware Version: Car Battery Diagnostic Tool

Item Type: Battery Testers

Item Weight: 0.35

Voltage: 12V

Material Type: Plastic









The BST100 Advantage:

1.Simple and easy to use

2.Tests batteries on and off the vehicle

3.Accurate results in milliseconds

4.Battery life analysis

5.Analysis results: Good or Replace

6.Large easy to read LCD screen

7.Test results based on

8.CCA,BCI,CA,MCA,JIS,EN,DIN,SAE,GB and IEC
Standards

9.Quick test - inputs battery volume (AH), then shows battery status

10.Vehicle cranking system test - cranking time, voltage and statu

11.Vehicle charging system test—load voltage, unloaded voltage, ripple status, and charging system status



ANCEL BST100 Function

1.Identify battery status Good or Replace

2.Check Battery Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.

3.Check Internal resistance value (Ohm)

4.Display battery life in percentage (%)

5.Battery Cranking Test, load test

6.Battery Charging Test, Ripple Test

7.Support battery ripple test and review test data

BST100 12V Battery Tester Features

1.Fast and smooth running speed with STM-32 chip set hardware

2.Accurate test results, using high precision amplifier and calibrated by professional battery testing tool, BST100 reading accuracy up to 99%.

3.Wide testing range cover from CCA 100- 2000 , 3- 220 AH, best in the market.

4.Industry initiative graphical battery voltage real time monitoring, can be analysis battery data more accurate.

5.Unique battery results display in percentage and meter mode.

6.Test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.

7.Polarity reverse connection protection, reverse connection will not damage the tester or affect the vehicle and battery.

8.Directly test the battery with loss of electricity, no need to full charge before testing.

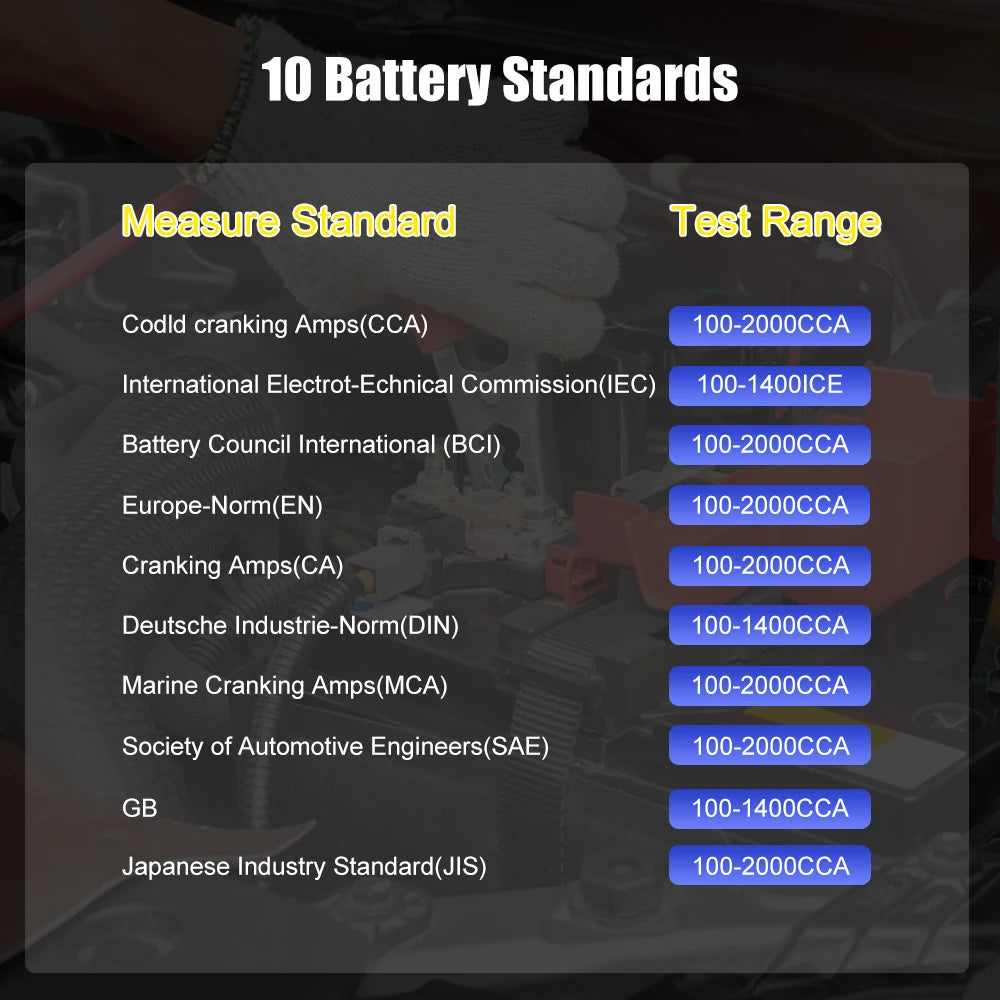

9.Testing standards include currently the world's majority of battery standards, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.

10.BST100 is used to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL EPB cell





Charging System Test

Let you know the output voltage of the generator,the rectifier diode and charging current.Moreover,it analyze the state of the charging system and battery through the above data,provide you with an accuraye charing system test

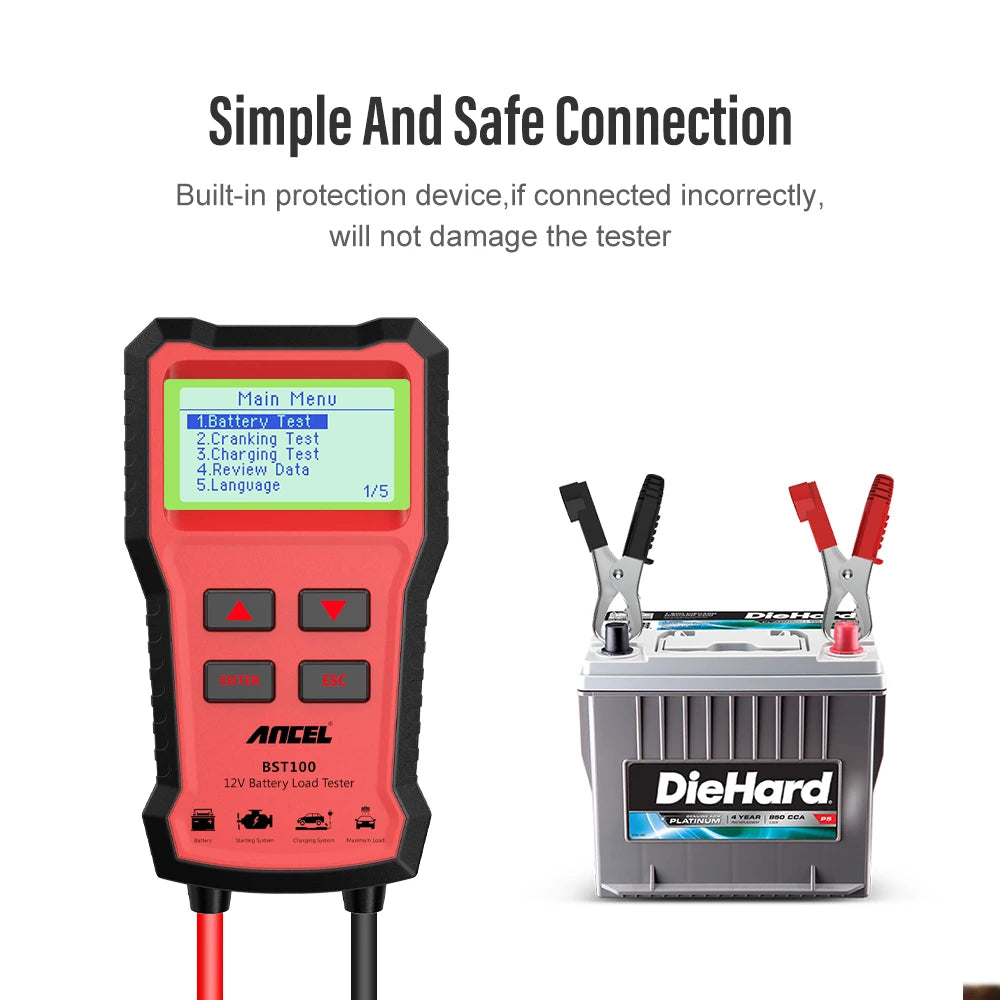

Simple And Safe Connection

Builite-in protection device,if connected incorrectly.will not damage the tester



Battery Voltage Ripple Test Analyse

A great update From basic tester,deep analysis for battery voltage change at each stage.

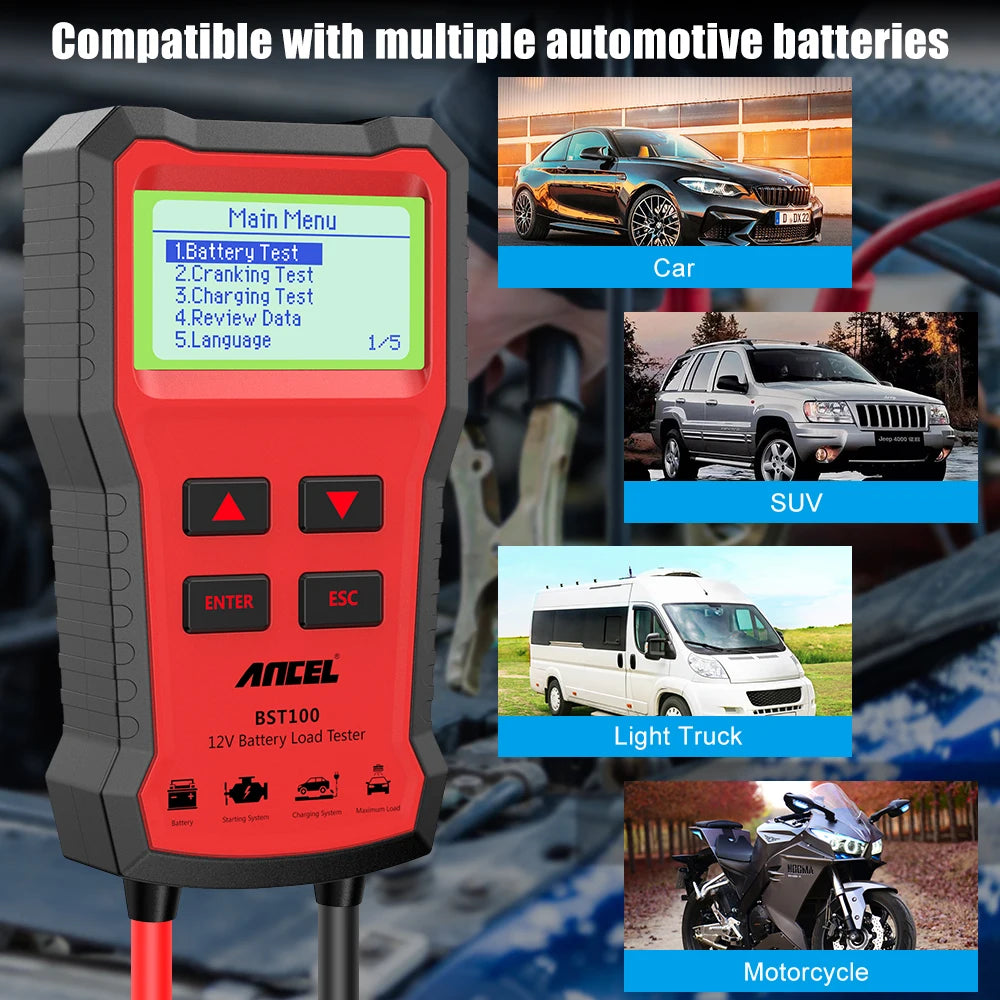

Ancel BST100 Car Battery Tester Application

Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC are supported.





Advantages of this method:

(1) It can be used for checking almost all the batteries including low capacity battery and internal resistance of the notebook battery exclusively.

(2) It will not harm the battery by using this method.
