SPECIFICATIONS

External Testing Certification: ce

Hardware Version: Newest

Certification: FCC

Certification: CE

Software Version: Newest

Item Weight: 2.3

Voltage: 12V

Electronic: No

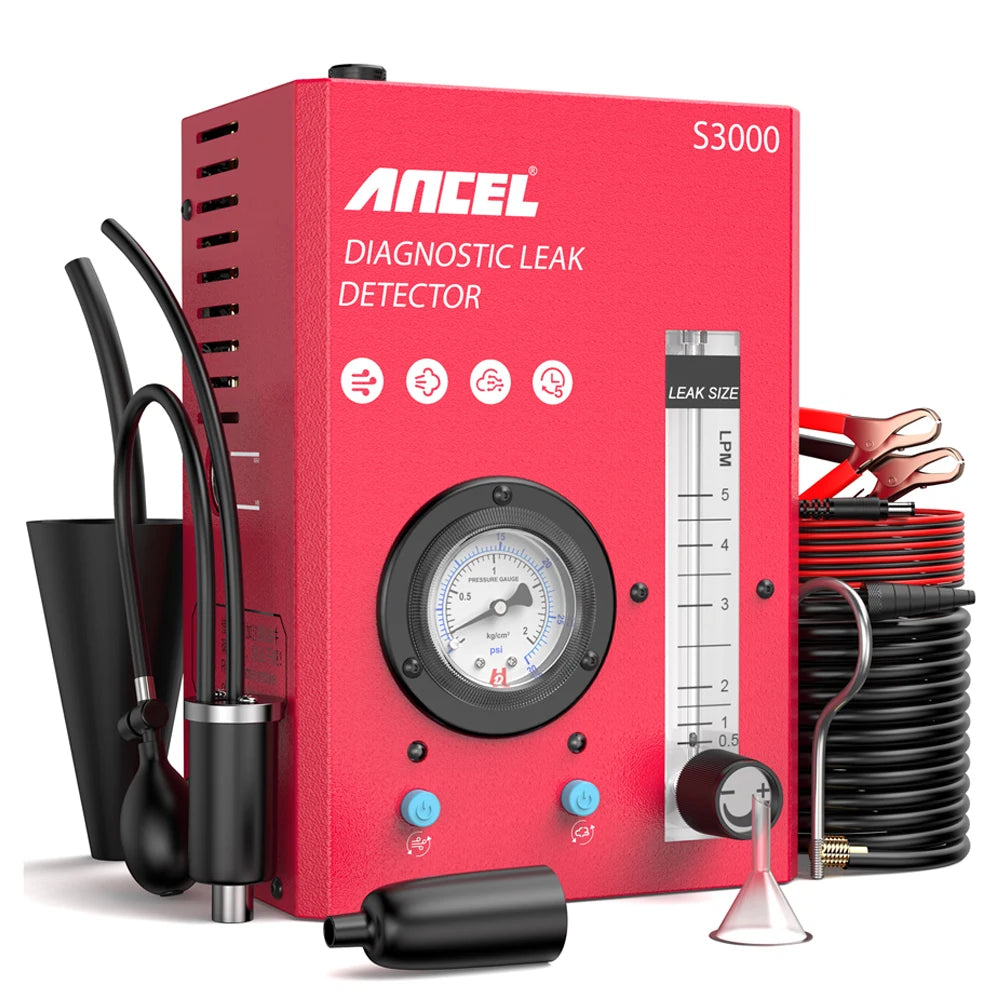

S3000 smoke leak detector equipped with pressure gauge and adjustable flow meter, which helps you control the smoke effect easily and allowing you to estimate the size of the leak by the change of the gauge value. Throuth heating mineral oil or baby oil into smoke, and then pressing it into the sealed pipeline system, it can be outputs lots of smoke within 30 seconds, improve the efficiency of diagnosis.





Feature:

[Wide range of applications] For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats.Works on all car makes and models.

[Powerful and easy operation] This smoke machine has its own air pump, it does not rely on other air machine.
Connect the detector with DC12V battery,It can be outputs lots of Smoke within 30 seconds after turning on.

[Advanced technology] It works on the EVAP system (we also have another version that specially designed for EVAP system).

[Overheat & Anti-frost protection] The detector has smart protector. If it exceeds working limit,for e.g over 75℃. It will power off automatically.

[Three-year warranty] As long as the equipment is not damaged by man-made problems, we will renew it for free

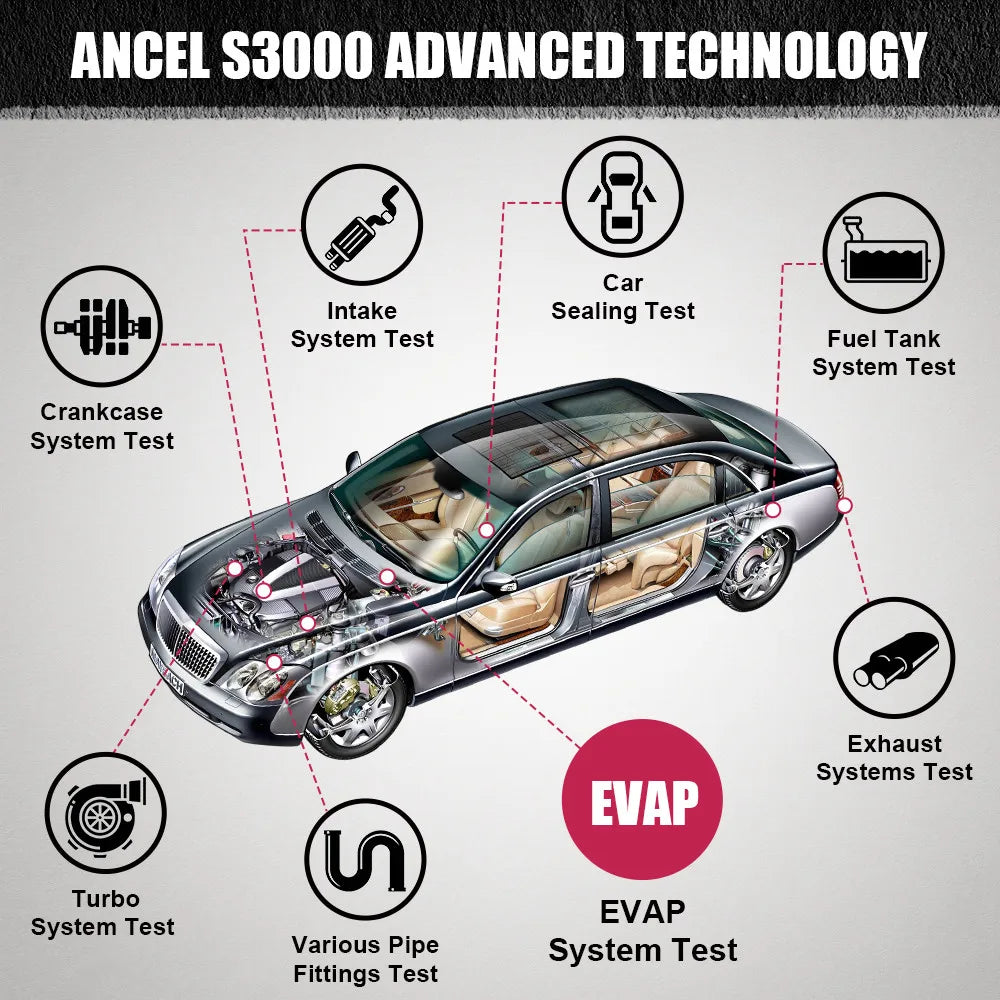

ANCEL S3000 Advanced Technology

▶Crankcase System Test
▶Intake System Test
▶Car Sealing Test
▶Fuel Tank System Test
▶Turbo System Test
▶EVAP System Test
▶Exhaust System Test
▶Various Pipe Fittings Test.

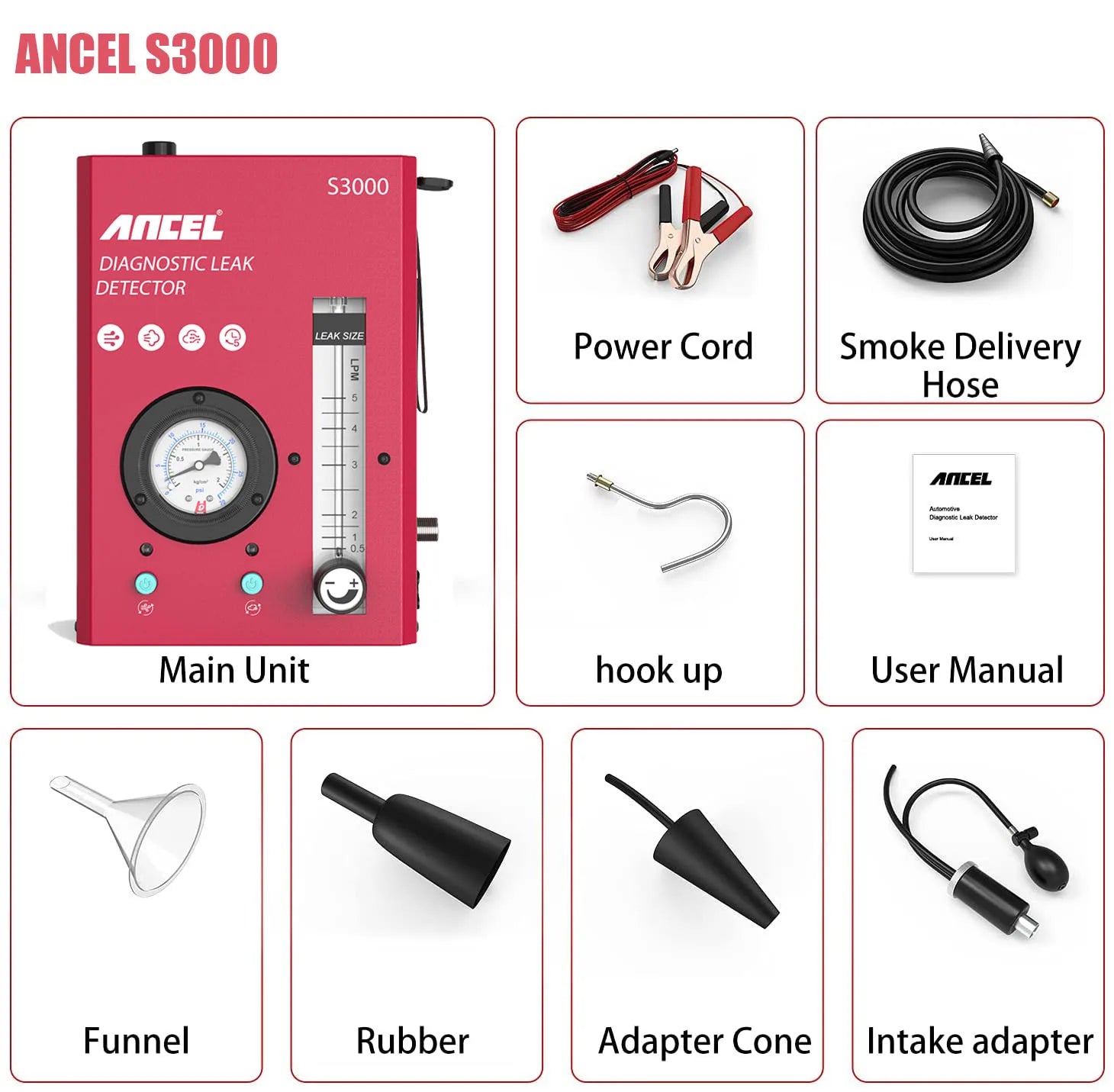

S3000 Specification

Output Pressure: 7-12 PSI
Output Flow: <6 L/Min
Power Supply: 12V automobile Battery 6Amp
Air Pressure Output: Built-in air pump
Test Oil Capacity: 10-20ml
Length of Power Cord: 2.5Meters
Length of Smoke Hose: 2.5Meters
Package Weight: 2.3kg/5 lb
Main Unit Dimensions: 7.28*5.11*3.34 inch
Package Dimensions: 12.2*9.44*4.52 inch

How to do Leakage Test?

1. Turn OFF the ignition of the vehicle. LEAK TEST OF VEHICLE SYSTEMS REQUIRES THE ENGINE TO BE OFF.

2. Dismantle the air filter and the throttle connections.

3. Clean the inner wall of the intake opening to avoid sharp objects and put the Universal Intake Adapter into the opening.

4. Connect the Power Cord to 12V vehicle battery.

5. Now the Power LED would be ON, if else check the power supply.

6. Introduce the smoke nozzle into the system via the Adapter Cone.

7. Press Air Control Switch, wait for 30 seconds until the system is pressurized, and check the Pressure Gauge & Flow Meter reading for leak status, if the unit is equipped with Pressure Gauge & Flow Meter

8. Press Smoke Control Switch, .unplug and Plug back the smoke nozzle back into the Cone Adapter when there’s obvious smoke coming out of the smoke nozzle.

9. The system will be ready for leak check in 2 minutes. Use a bright light torch or working lamp to assist.

10. After test, press Smoke Control Switch again to stop the unit from generating smoke and press Air Control Switch to stop generating pressurized air.

11. Collect the Smoke Hose and the Power Cord with the Velcro Straps for storage. Hang the unit or make it stand in UPRIGHT position only. Do NOT lay it down.

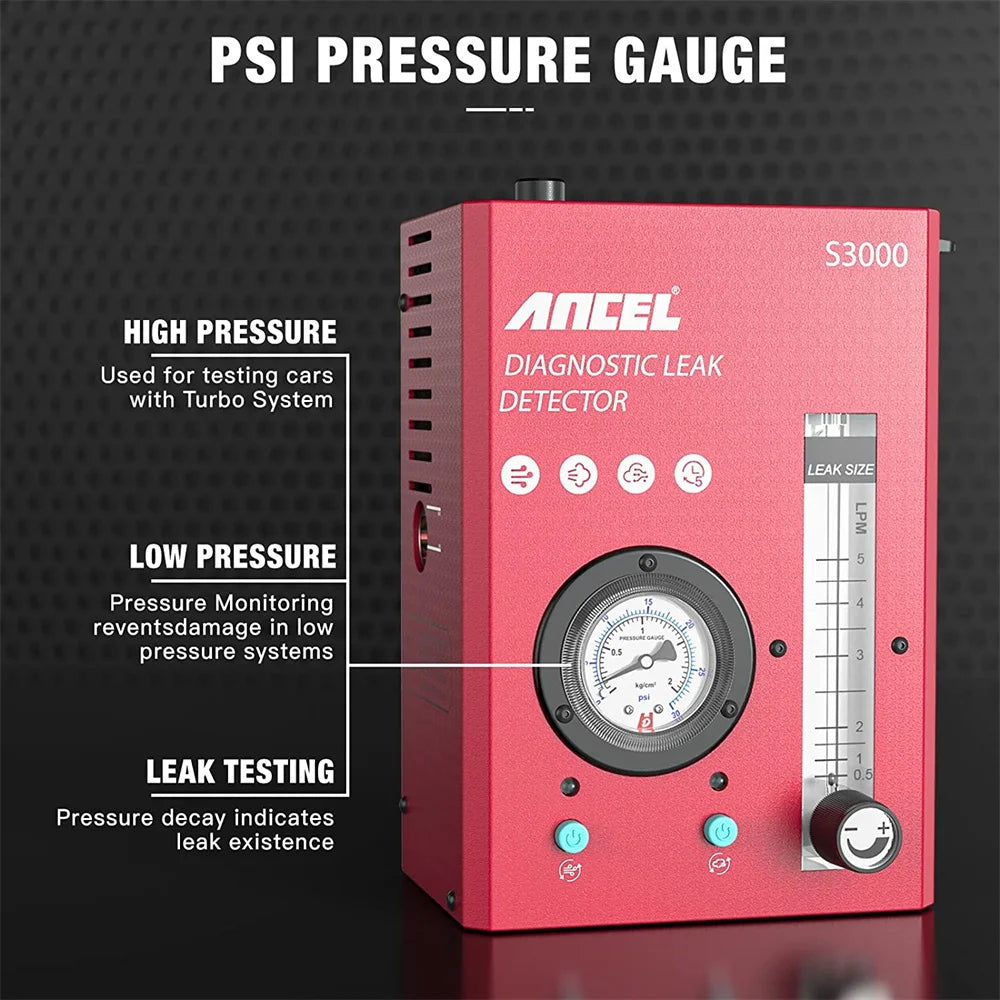

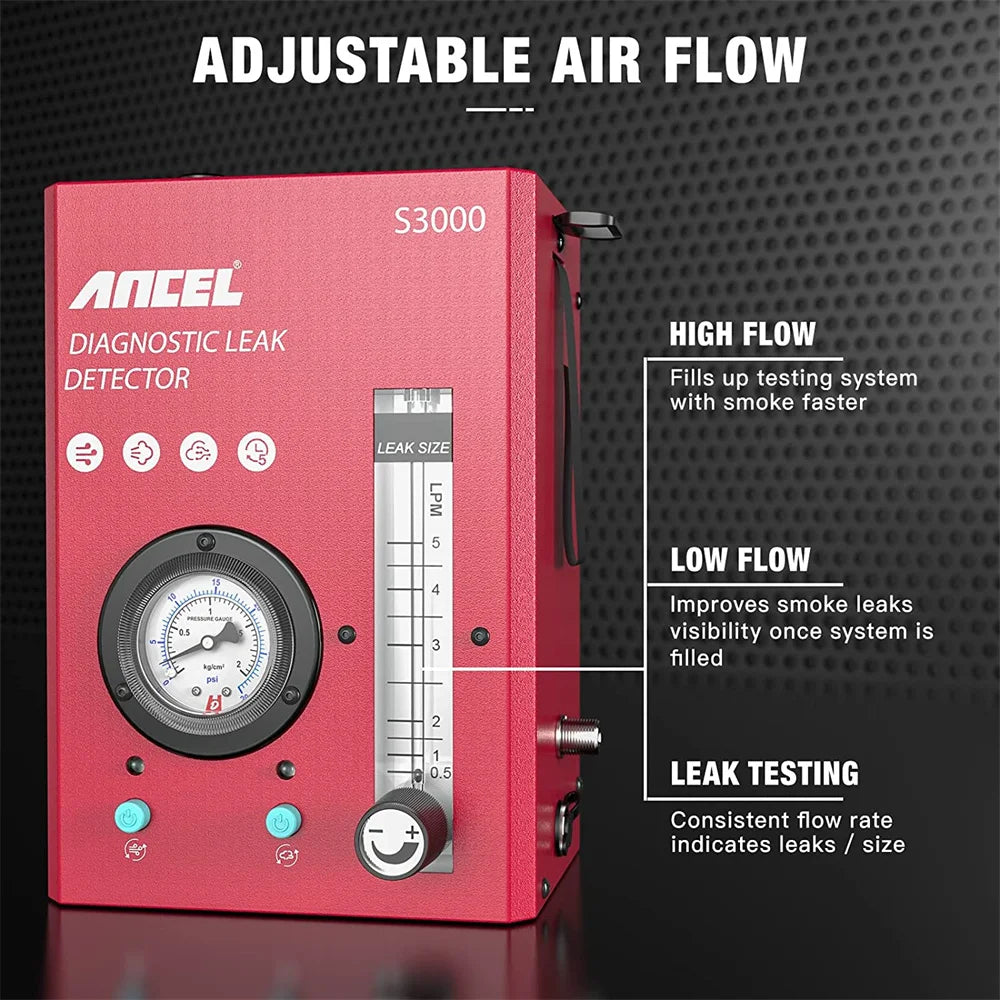

Leak Status Indication

NO Leak: When the value of the pressure gauge remains unchanged and the flow meter will read zero (ball at bottom of scale), it means that there is no leakage in the system.

Small Leak: When the value of the pressure gauge drops and the ball in the flow meter slowly fall to the bottom of the scale, it indicates a small leak in the system.

Massive Leak: When the value of the pressure gauge reaches zero and the flow meter ball never falls to the bottom of the scale, it indicates a large leak in the system.

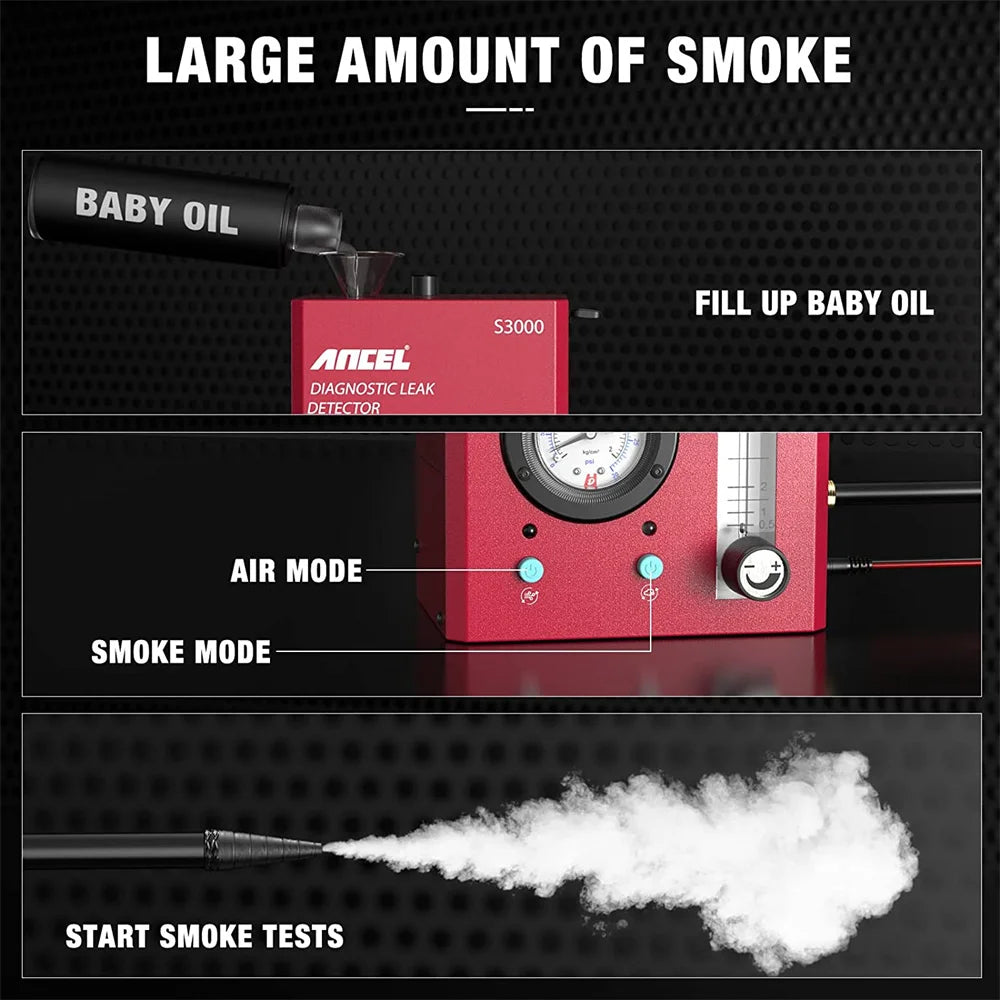

Independent switch control design

Air mode :First, use the air mode to directly measure the leak, and judge whether there is a leak by the pressure gauge value. If it is less than 0.5bar, it will inevitably leak. If it reaches 0.8bar and above, the pipeline tightness is very good.Then there is no need to waste baby oil

SMOKE MODE:After the air mode determines that there is a leak, use the smoke mode to find the leak.



Overheat & Anti-frost Protection

For detecting the leakage of pipe systems on cars,motorcycles,snowmobiles,off-road vehlicles, ATVS,light trucks and speedboats,Suitable for all car models.

Overheat Protection
When the temperature of the device exceeds 75℃, power protection will be intelligently activated to turn it off.

Anti-frost Protection
The device can also work normally at -20℃.

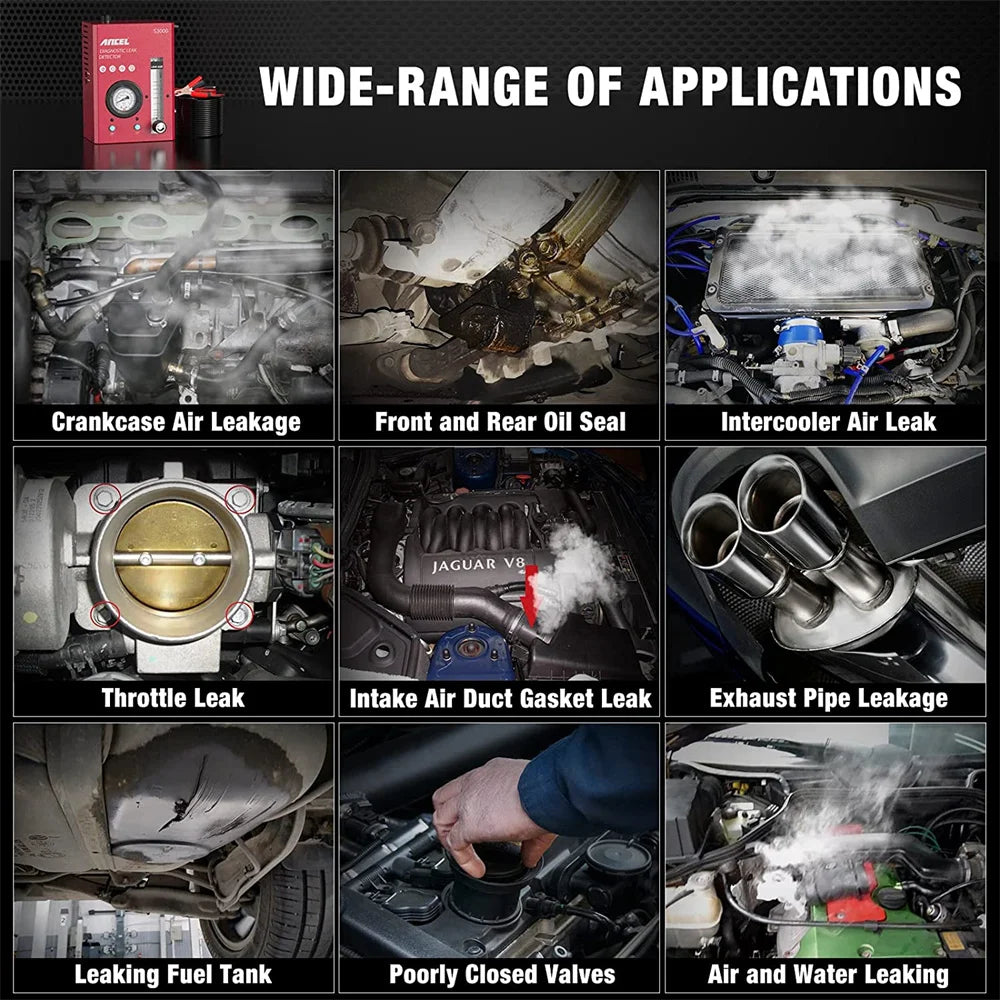

Wide Range of Applications

For detecting the leakage of pipe systems on cars,motorcycles,snowmobiles,SUV,ATVS,Light Turks,Speed Boats.
