SPECIFICATIONS

Type: Display

Display Connector: 5 Pin Female

Compatible With: Bafang Motor Kits

Waterproof: IP 65

Speed Mode: 0-3/0-5/0-9

Display Voltage: 36V/48V/52V/60V

Default Password: 1919

Default Speed Limits: 99KM/H

Holder Diameter: 22.2/25.4/31.8 mm

Headlights Turn On: Long Press "+"

6KM/Walk Mode: Long Press" - "

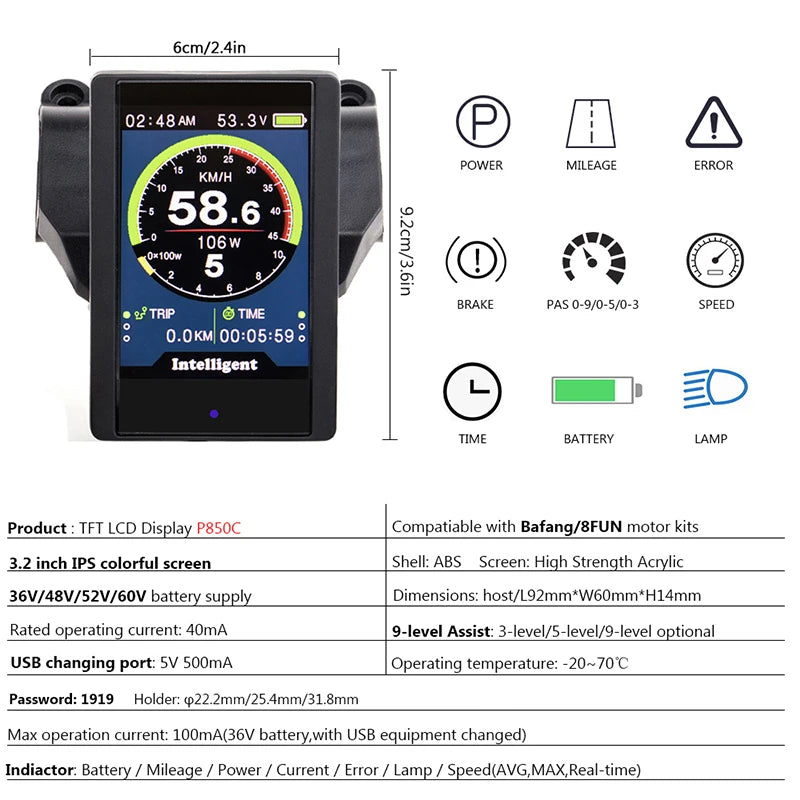

Display Size: 60*93 mm

USB Ports: Charging The Phone

Communication Protocol: BF-UART

Warranty: One Year





• Display Only Applicable To Bafang Mid/Hub Drive Motor Kits

• Communication Protocol:BF-UART

• Connector: 5PIN Female Circular Connector

Note：If your motor is not Bafang brand,these goods not fit for you,if your motor kits use other Communication Protocol,this display not fit for you too,please contact with us before you make order except you make sure our display fit for you .We can also customize the display.



Other Related Information

UART has two protocols, BF-UART and 5S-UART, which are not universal. General UART protocols can be determined by the connector，most of the 5pin circular connector uses the BF-UART protocol, while the male connector uses the 5S-UART protocol.The CAN protocol uses triangular connectors.



Highlights:

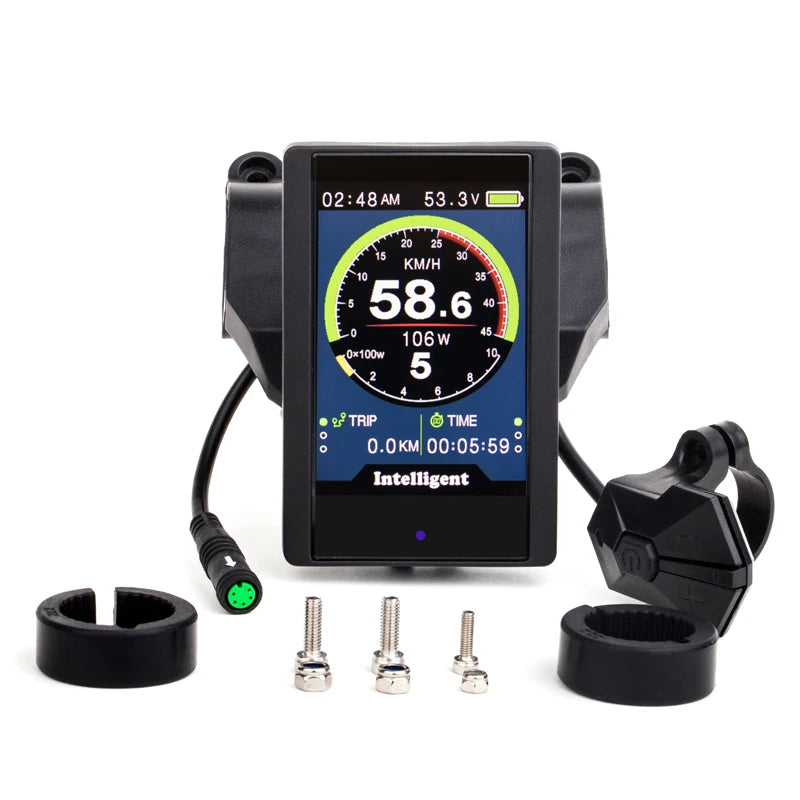

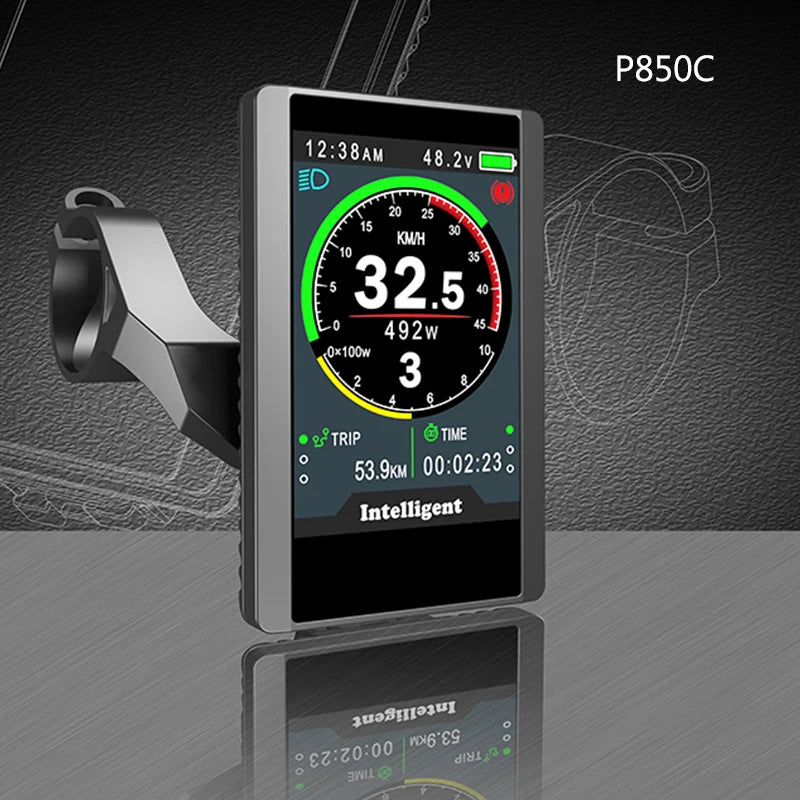

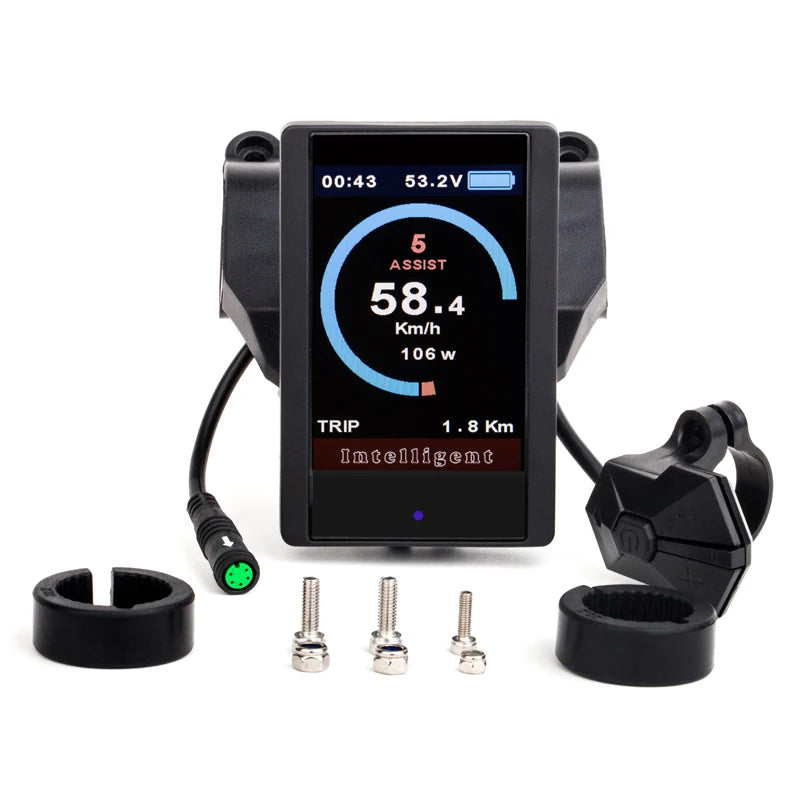

• P850C/850C LCD E-Bike Display

• 1,USB Ports Used For Charging The Phone

• 2,Real-time Battery Power Show Clearly And Accurately

• 3,Color Full LCD Display & Waterproof

• 4,AVG SPEED, MAX SPEED, SPEED(Real-time).

• 5,Total Kilometer/Mile Distance , Time ,Speed and PAS Level Indicator

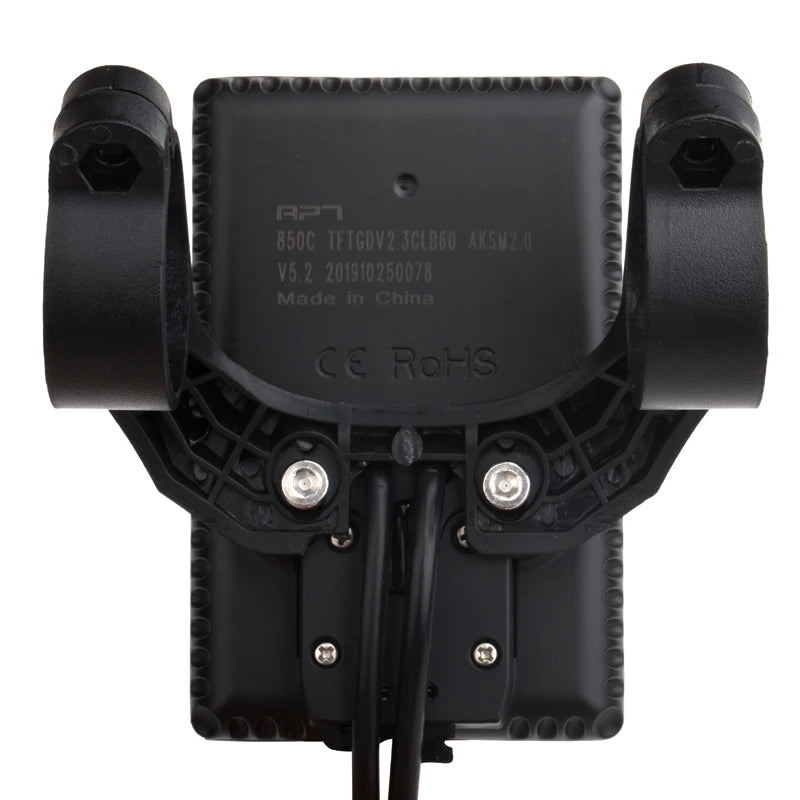

• 6,CE RoHS
  Caution:

Do not plug in or unplug this display when the power to the unit is on.

Avoid collisions.

Protect the display’s membrane to provide water resistant performance.

Do not attempt to reset parameters if the display is not working.

Call for service if the display is not working.

Installation:

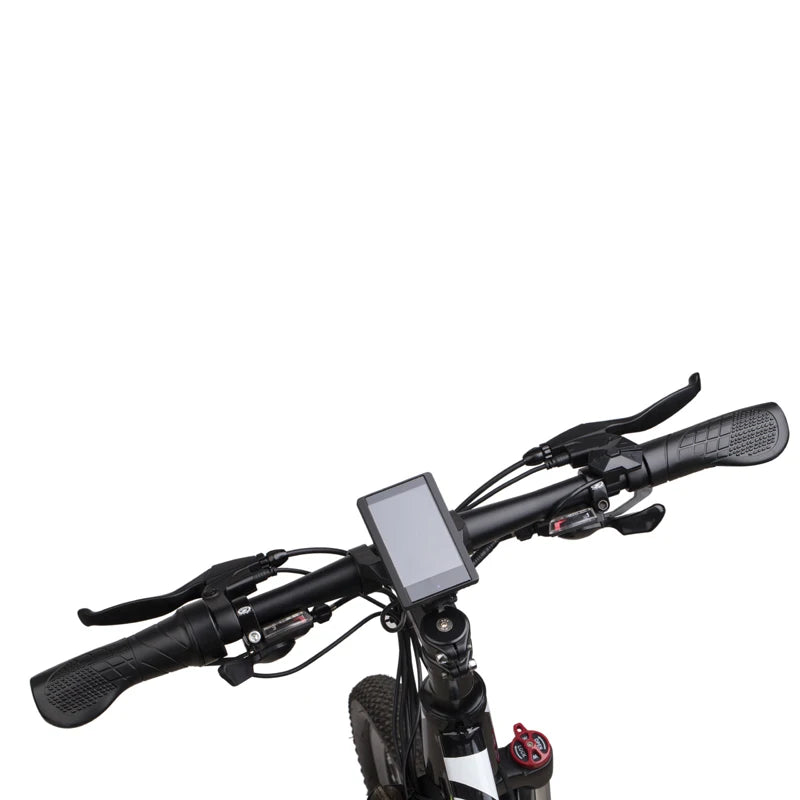

Install the display and button control on the handlebar and adjust its location. Plug it into the controller with power off.
