500W EBike conversion Kit Rear Drive Wheel
500W EBike conversion Kit Rear Drive Wheel
SPECIFICATIONS
Design: Brushless
Voltage: 48V
Mounting Position: Rear Drive
Motor Type: Brushless Gear Hub Motor
Feature:
-

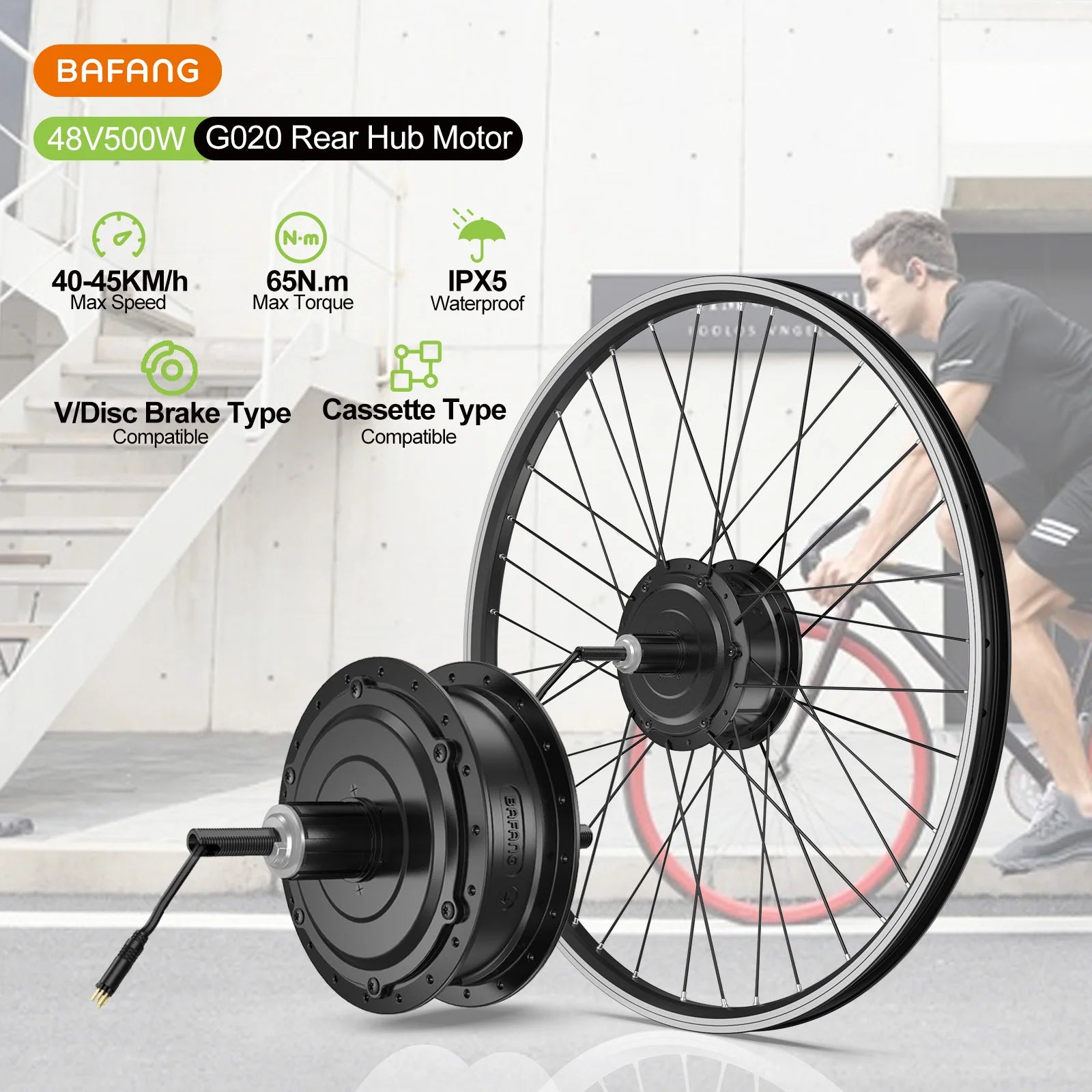

Stable Rear Drive System:This Bafang hub motor, which is compatible with the disc brake, has a rated power of 500W, providing ideal power for vehicles.
-
Two riding modes:Pure electric bikes & pedal bicycle, switch between pure electric mode and assist mode at will.
-
Super Cost-Efficient:Speed up to 38-40 KMH, 470 RPM, efficiency ≥ 80%.
-
Universal Compatible:It's compatiable with mountain bike,road bike, racing bike ect bikes with 135-142mm rear drop out and 100mm front drop out.
Motor Specification:
Bafang Model: G020.500

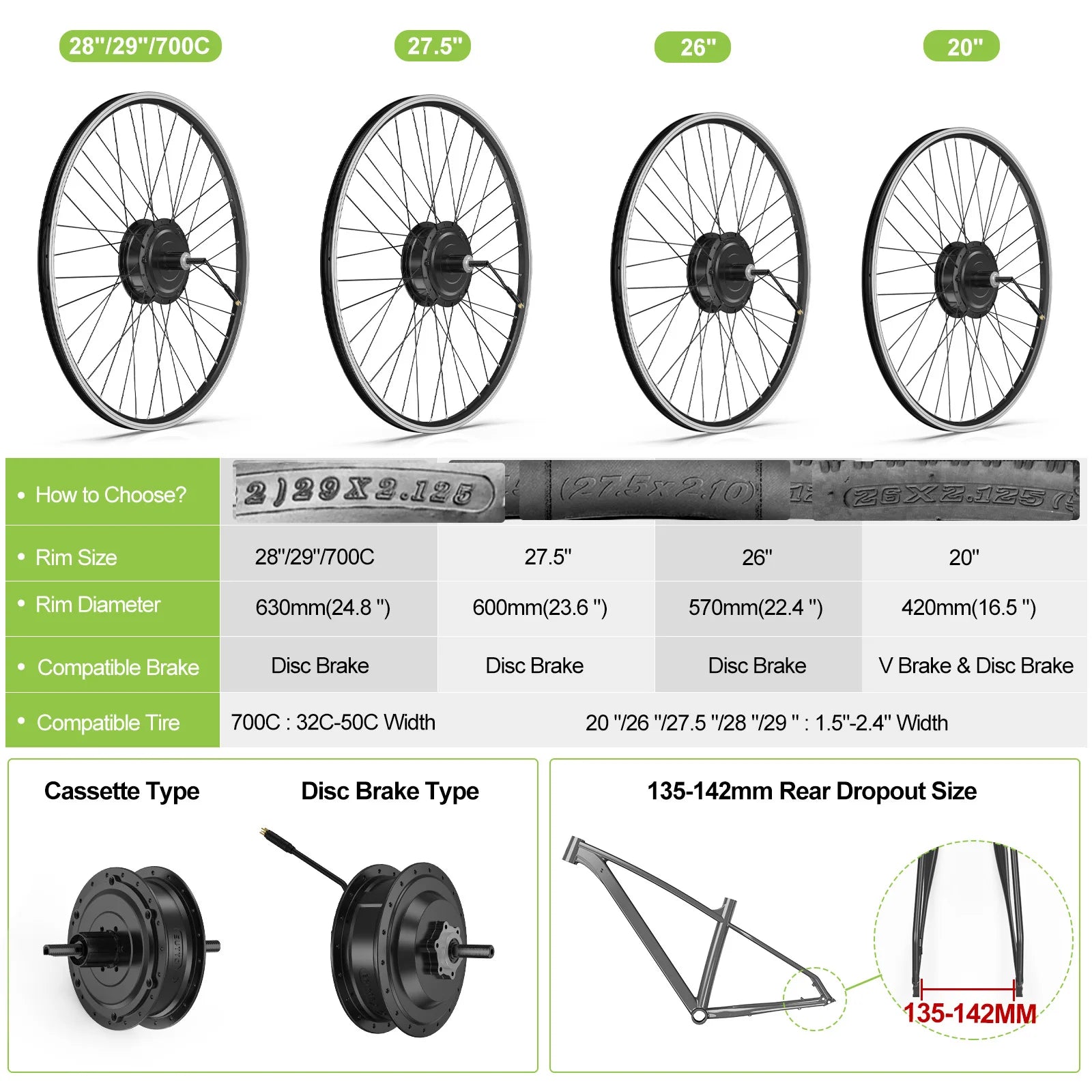

Wheel Diameter (Inch): 20"/26"/27.5"/700C---Optional
Construction:Gear drive
Rated Voltage (DCV): 48
Rated Power (W): 500
Max Torque: 65 N.m
Efficiency (%)≥ 80
Color: Black
Weight (kg): 3.3kg
Noise Grade (dB)< 55
Operating Temperature: -20℃ ~ 45℃
Controller Specification:
Voltage: 48V
Power: 500W
Current: 18± 1A
Size: 4.33" * 2.4" * 1.37"
FAQ:
Q:How do I know if this rear hub drive motor fits for my bike?
A: The rear hub motor fits for the bike with rear drop out size "135-142mm", DC type fits for max 10 speeds cassette, D type fits for max 7 speed flywheel. The front hub motor fits for the bike with front drop out size "100mm".
Q:Can I install the motor as soon as I receive it?
A:Before installing the motor, please follow the steps in the manual to connect the motor to see if the motor can work normally. If there is a problem, please contact us first, we will provide technical support, don't worry.

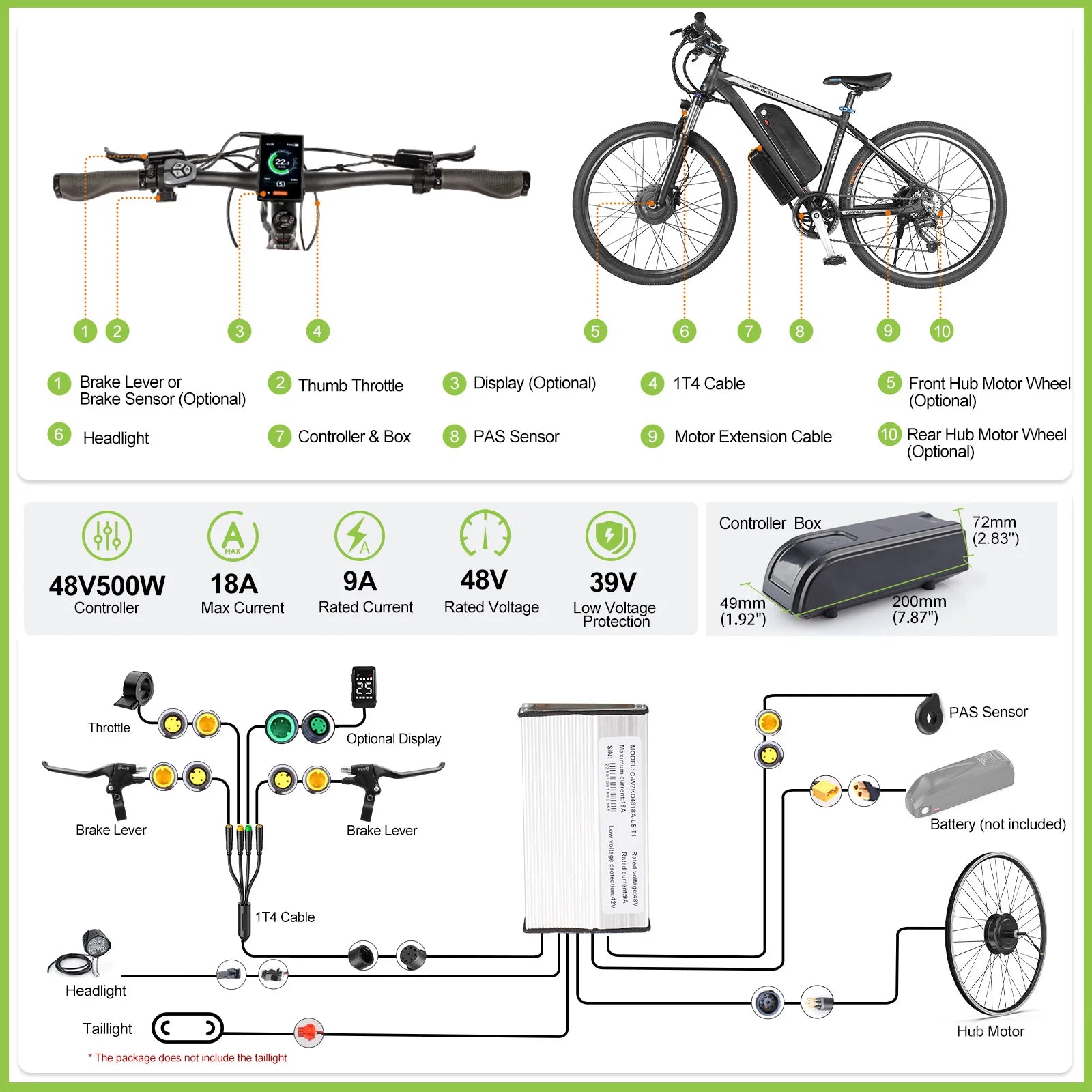

Packaging List:
1 PC * BAFANG Hub Motor Wheel
1 PC * 48V 500W Motor Controller
1 PC * Controller Box

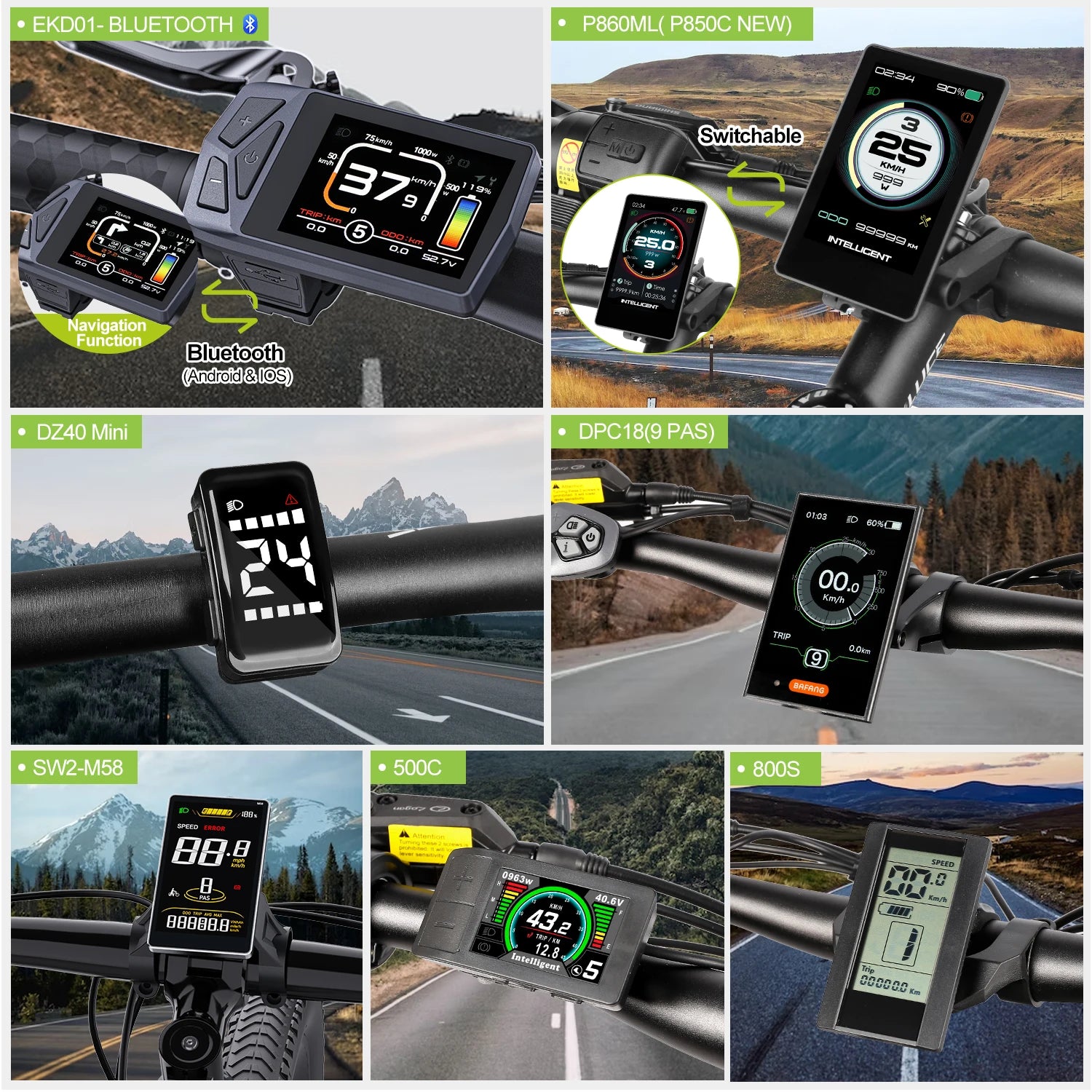

1 PC * Display (Optional)
1 PC * 1T4 Cable
1 PC * Thumb Throttle
1 PC * PAS Sensor
1 Pair * Brake Levers ( We send you the brake levers in default. If you need brake sensors, please kindly leave message to us)

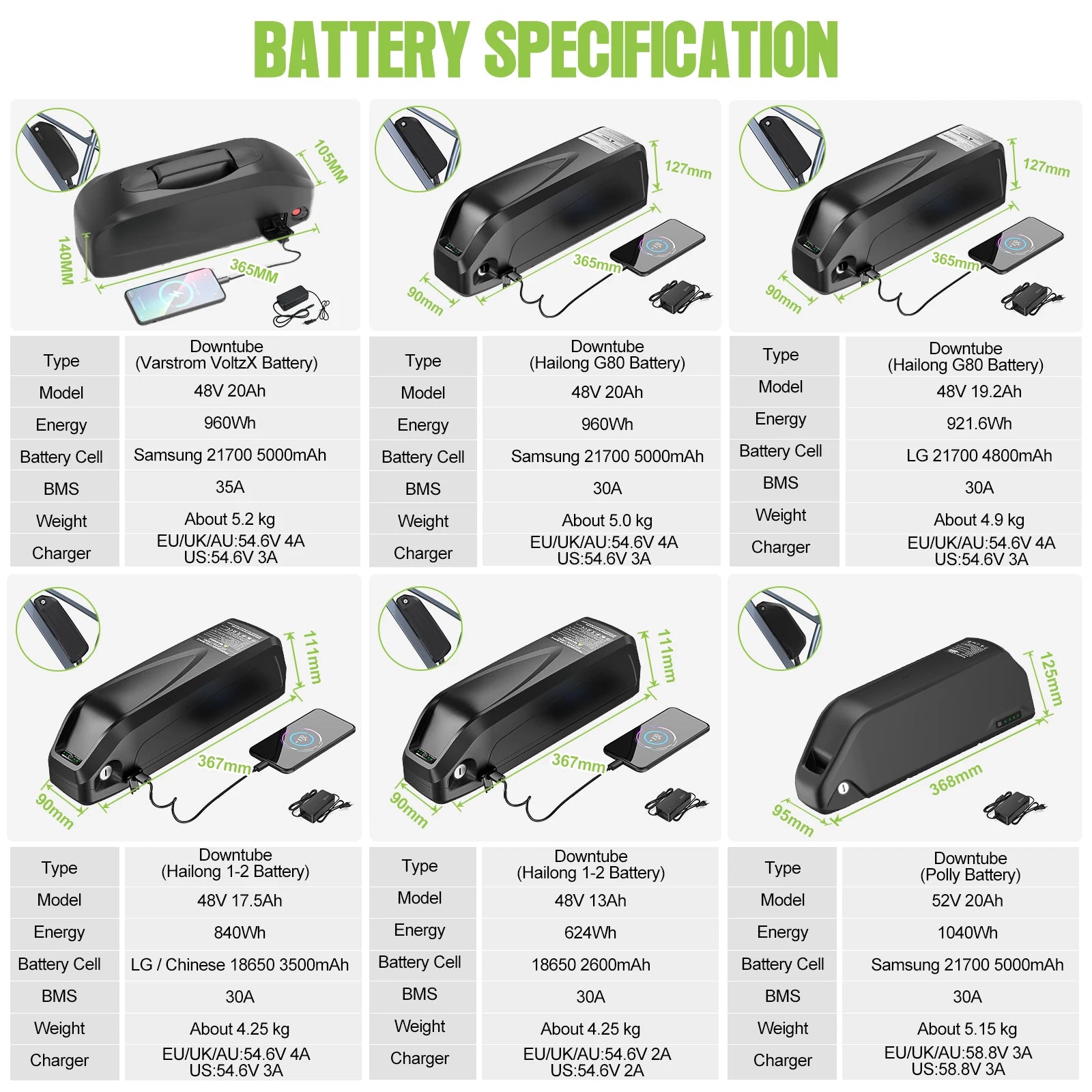

1 PC * Battery & Charger (Optional)
Gifts: 1 PC * Front Light + 1 Set * Cable Ties
