Specifications

Applicable Model: Trucks, RVs, Ambulances, Buses, Excavators, Engineering Vehicles (10㎡/107.64ft²)

Color: White

Working Voltage: 12V

Rated Power: 750W

Current(Max): 60A

Noise Level: 40db

Ampere: 15.4

Condition: New

Material: PP Alloy, PU Sponge

Number of Air Vents: 6

Assembly Required: Yes

Installation Position: Caravan Roof

Refrigerating Capacity: 2000W

Heating Capacity: 800W

BTU: 6000

Remote Control Distance: 3m/9.84ft

Efficiency Ratio: 3.0

Way of Use: Direct Replacement

Battery Model: 2*AAA Batteries(Not Included)

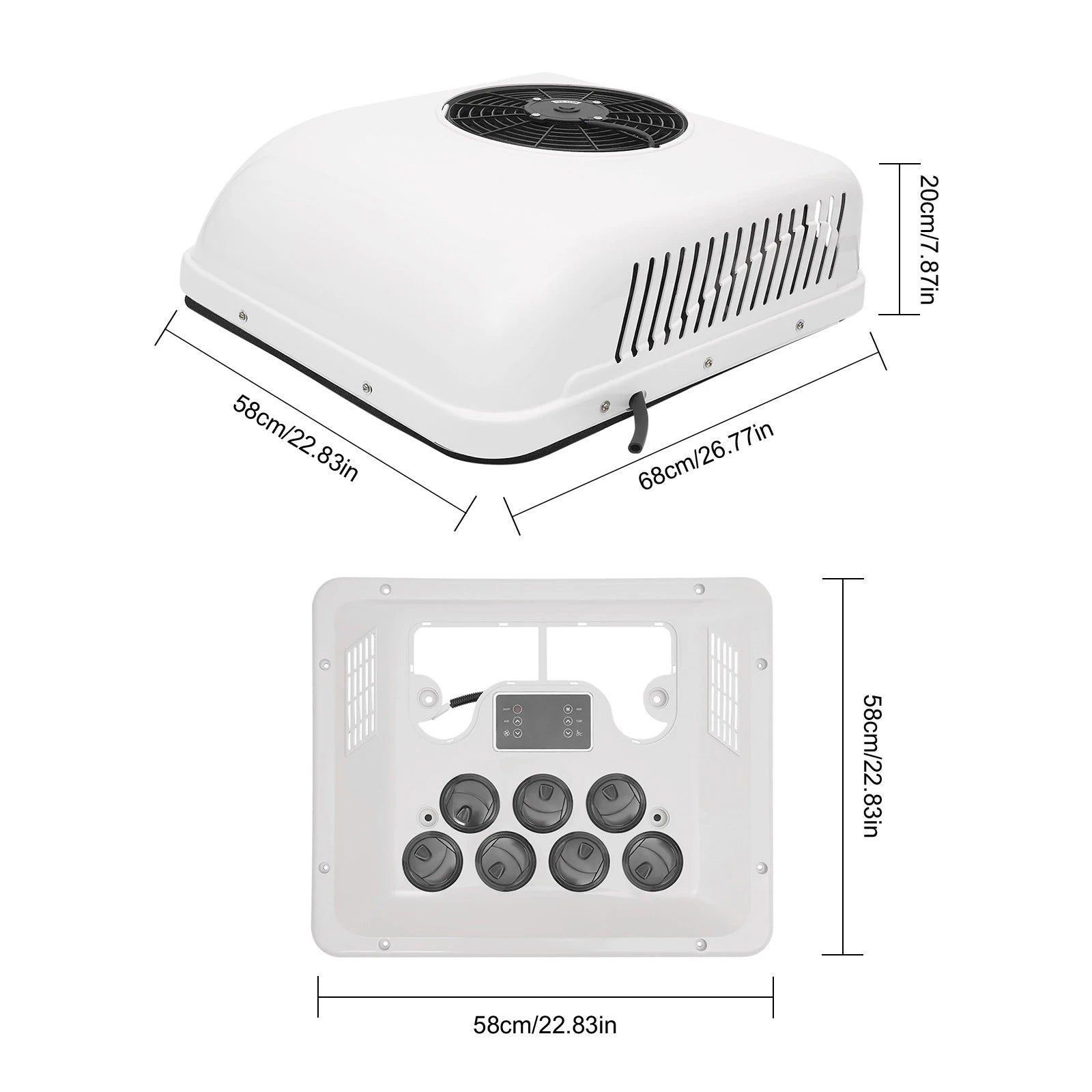

Air Conditioner Body Size: 68*58*20cm/26.77*22.83*7.87inch

Air Conditioner Decorative Cover Size 58*58cm/22.83*22.83inch

Package Size: 75*69*23cm/29.53*27.17*9.06inch

Gross Weight: 32kg/70.55lb

Net Weight: 30kg/66.14lb





Key Features



Build to Last: High-quality PP alloy and PU sponge foam can effectively prevent ultraviolet rays and provide high-strength compression and corrosion resistance, and can reasonably reduce noise and vibration, providing you with a comfortable environment. Through leakage testing and durability testing, it makes you feel more confident when using it.



High Efficiency: The high-power(cooling power: 2000W, heating power: 800W) dual shaft all copper motor and dual wheel evaporation fan fully meet your comfortable cooling needs.





Convenient Use: The two switch modes(touch screen and remote control), two functions for heating and cooling, and six adjustable air vents make it more convenient for you to use. No matter what climate you are in during your RV adventure, this air conditioner can handle it effortlessly.





Easy to Install: The fully connected internal wiring and design without drilling or modification allow you to simply connect the panel plugins of the internal panel to the top-level reserved plugins. Equipped with all the materials, you can easily and quickly start the installation.





Highlights

Brand New, With High Quality

Direct Replacement

Trouble-free Installation

High Efficiency

Strong and Durable

Convenient Use

Easy to Clean

Stable Performance

Long Service Life

Adjustable Direction



Installation Steps



1. Remove the original skylight first.

2. Fix the complimentary sealing tape along the window.

3. Fix the air conditioner body flat on the sunroof position.

4. Install the air conditioner decorative cover and fix it with special screws.

5. Connect the air conditioner power cable with the car battery pack.

6. Switch on the air conditioner with the remote control to test it and cool it.



Notes



1. Please check the size before purchasing, and note that the batteries and refrigerants are not included.

2. We strongly recommended professional installation. Please contact us if you have any questions.

3. Please allow the slight difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.



Fits (As a Reference)

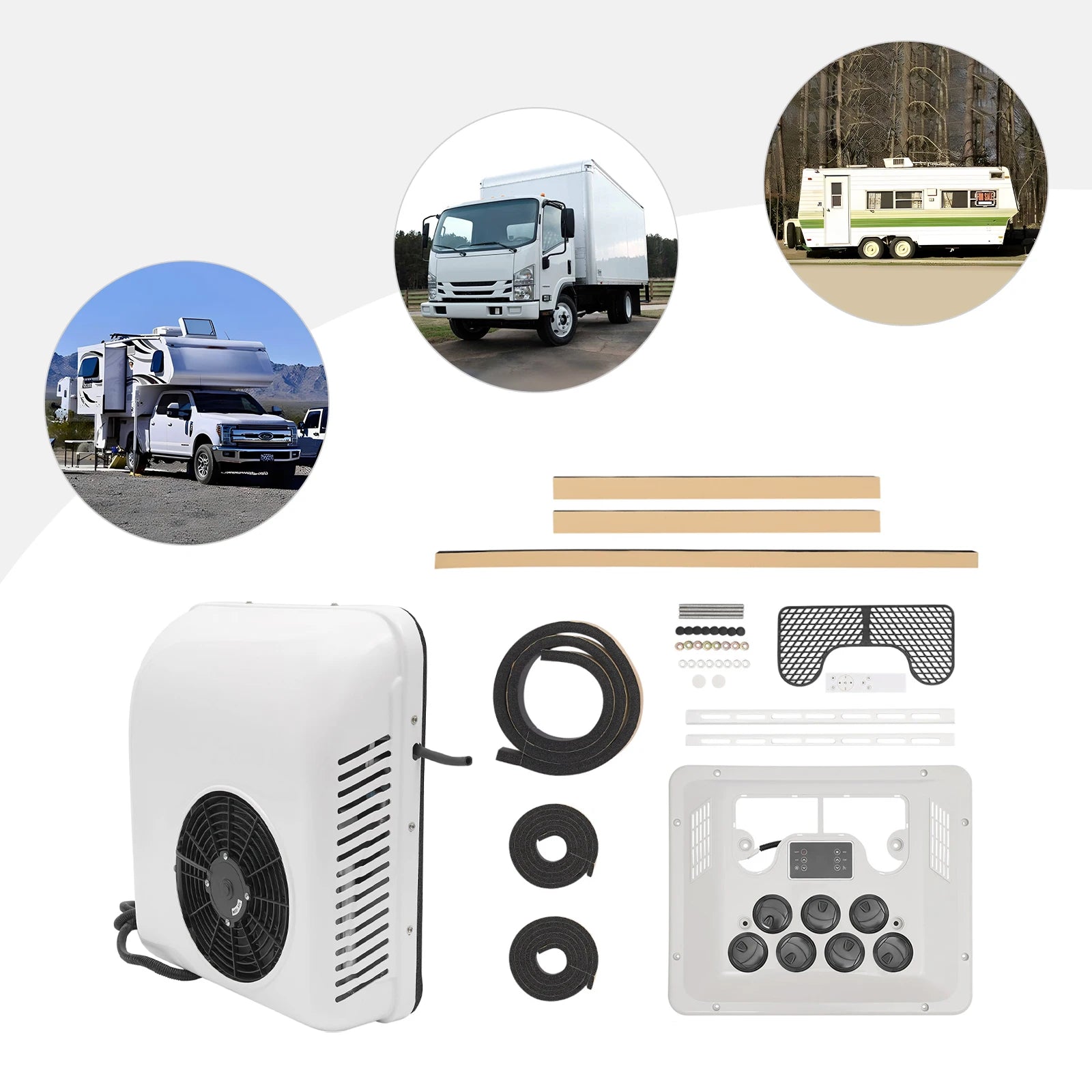

For Trucks, RVs, Ambulances, Buses, Excavators, Engineering Vehicles (10㎡/107.64ft²).



Package Included

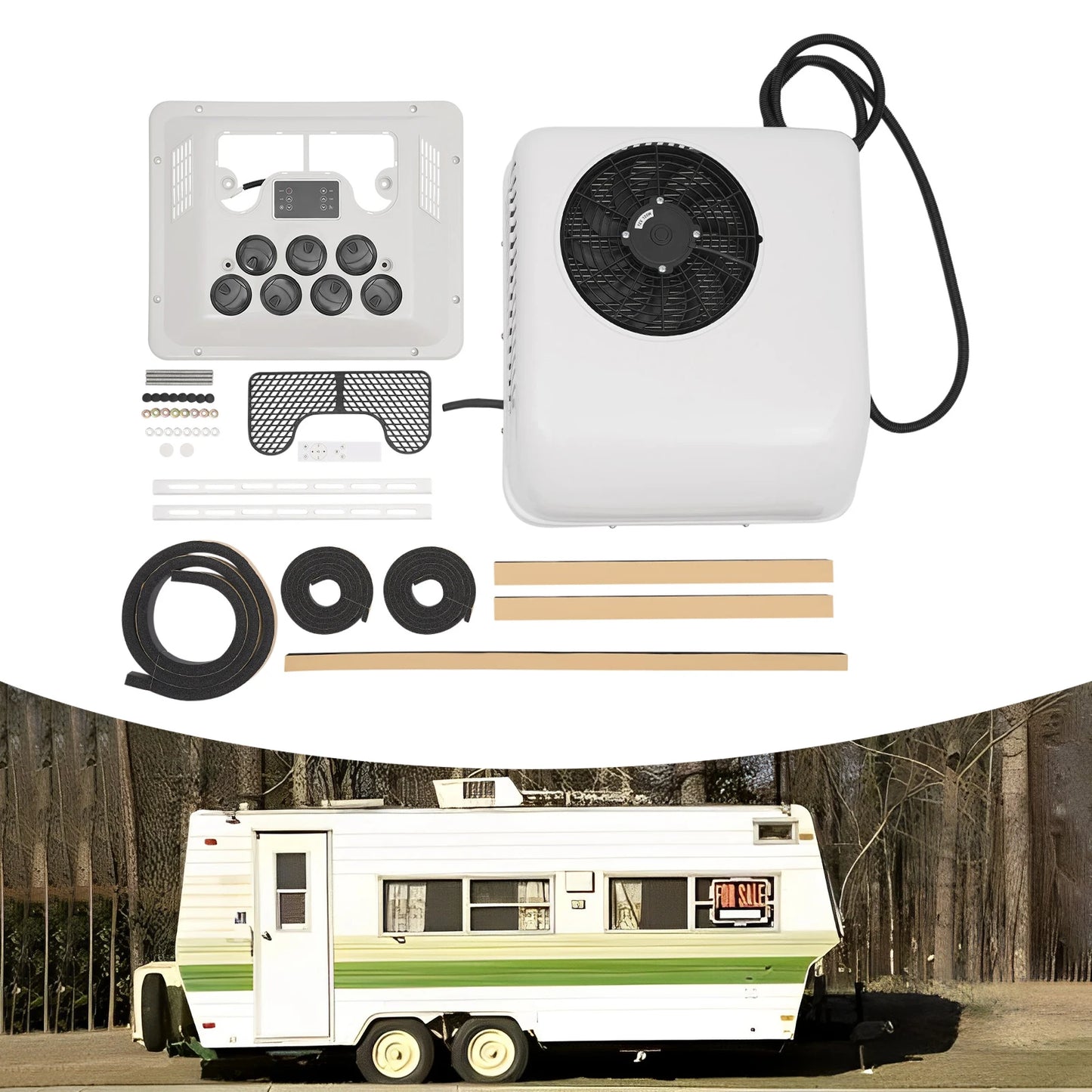

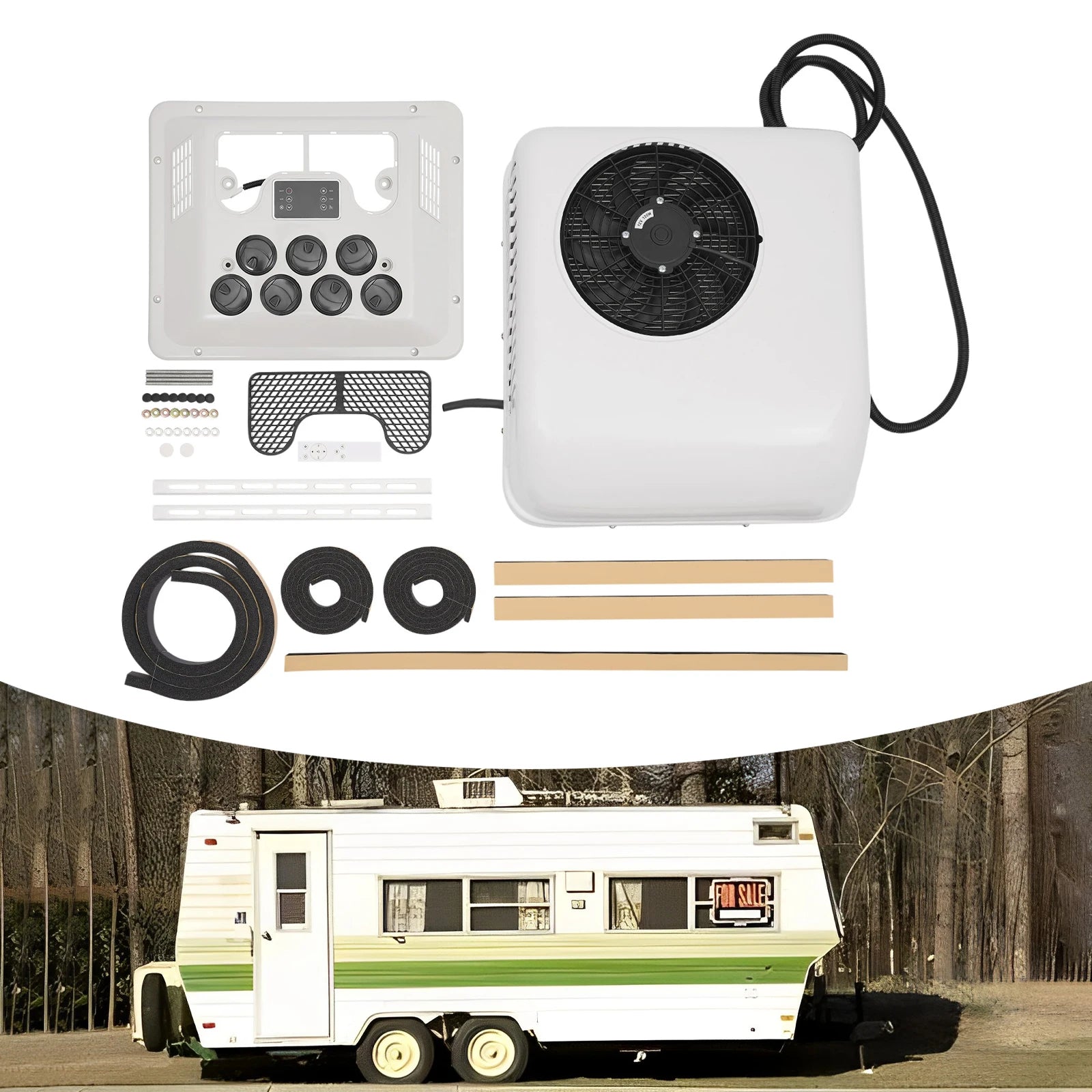

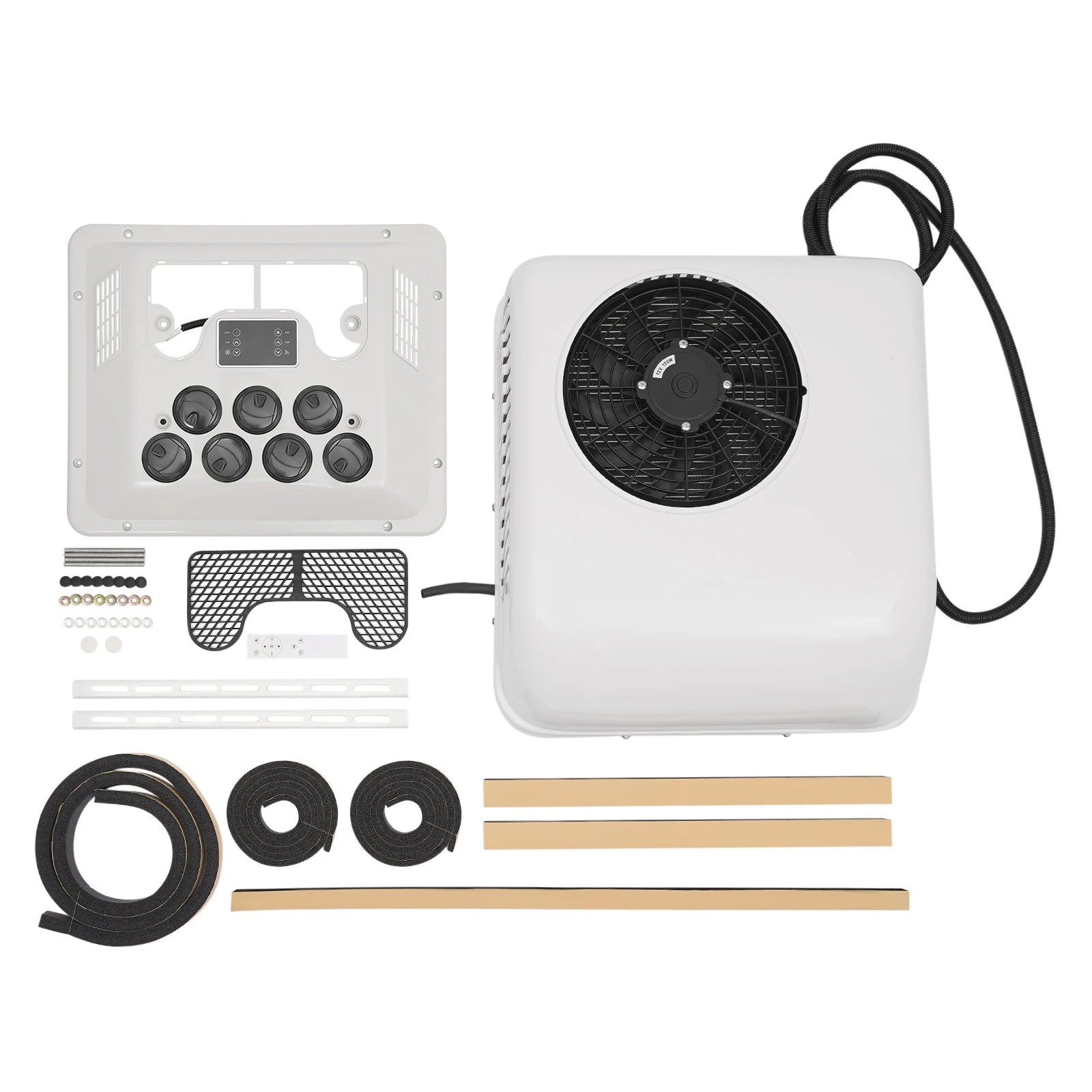

1* 12V RV Air Conditioner

1* Remote Control

Other Accessories for Assembly
