SPECIFICATIONS

External Testing Certification: ce

Hardware Version: 315mhz & 433mhz 2in1

Certification: CE

Software Version: 315mhz & 433mhz 2in1

Model Name: Autel MX-Sensor Rubber

Item Type: Pressure & Vacuum Testers

Voltage: 3.0 V

Electronic: No

Material Type: Rubber

Battery Life: 4-6 years

Operating Temperature: -40C to +125C

Storage Temperature: -40C to +35C

Operating Humidity: 90%

Operating Frequency: 315 MHz / 433 MHz

Pressure Monitoring Range: 0 to 800 kPa

Pressure Reading Accuracy: 10 kPa

Temperature Reading Range: -40C to +125C

Temperature Reading Accuracy: 5C

G Sensor Reading Accuracy: 15%

Transmission Power: 5-8 dBm

Battery: 3.0 V

Dimensions (W x H x D): 42.2 mm x 27.9 mm x 17.4 mm

Weight (Without Valve): 12 g

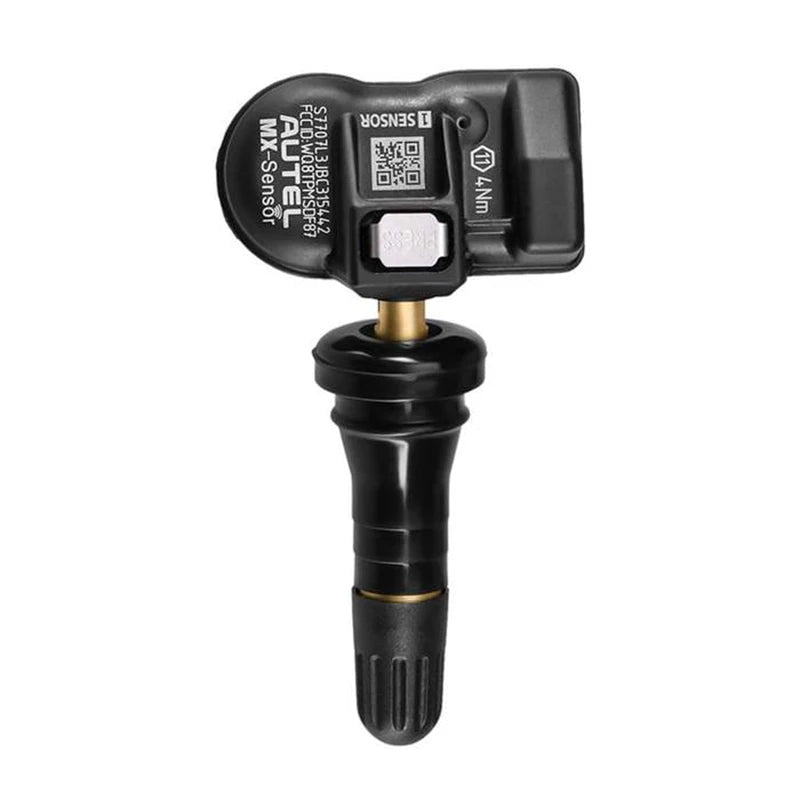

Autel 2in1 Sensor Rubber

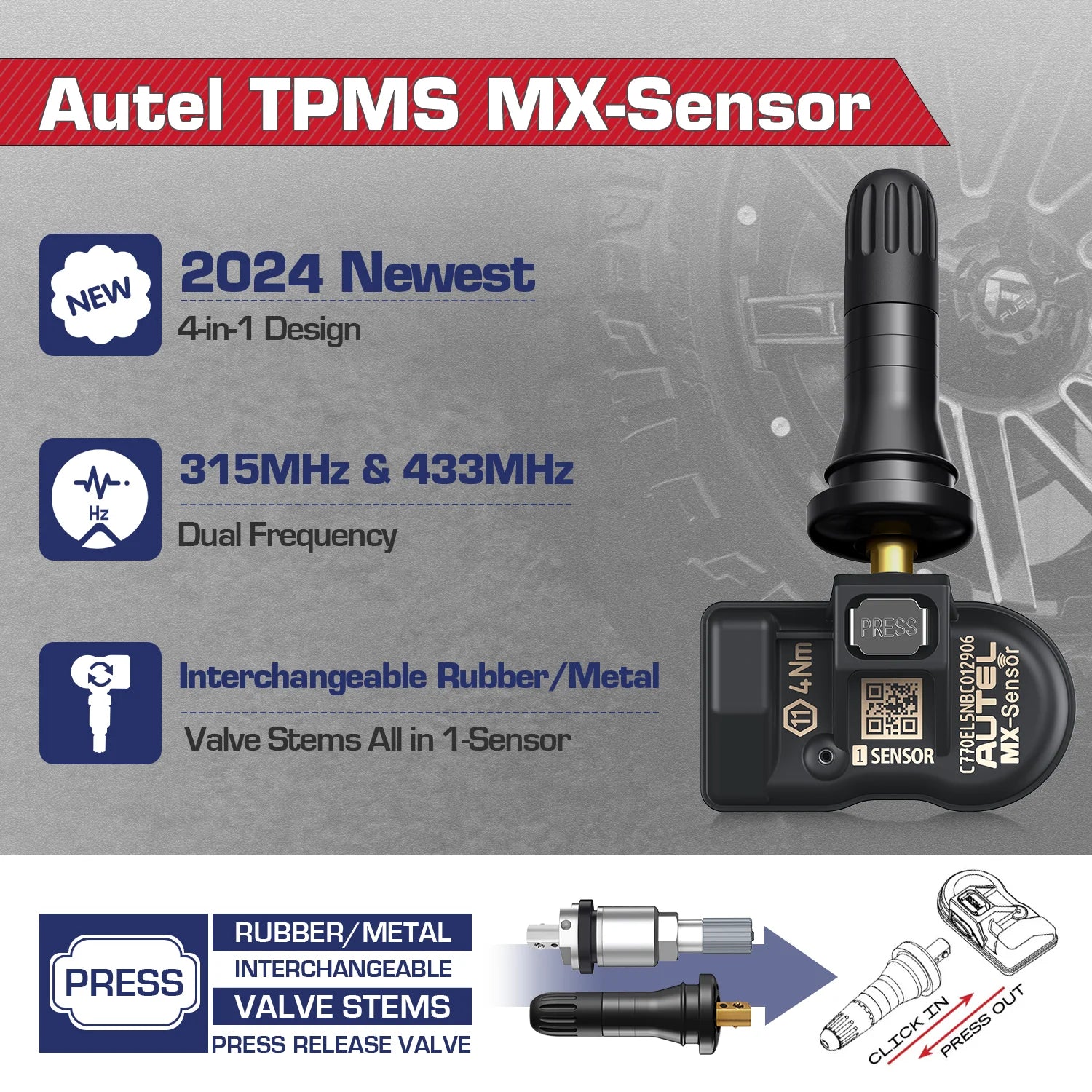

Autel 2 in 1-Sensor combines both 315MHz + 433MHz frequencies into one TPMS sensor with the highest industry vehicle coverage. The exclusive MX-Sensor patented PRESS release valve stem design, allows rubber and metal valve stems to freely interchange by hand, without requiring a tool for sensor head fitting. Built to match or exceed OEM sensors in frequency strength and durability, MX-Sensors are 100% ID clone-able with no relearn required and offer latest model vehicle coverage because they quickly update during installation with an Autel wireless programming tool.



Autel 2in1 Sensor Rubber Valve Features:

1. 2 IN 1 FEATURE: Only 1 Sensor to service nearly every TPMS equipped vehicle to lower repair cost and to have higher install efficiency with no relearn required. The MX-Sensor is 100% cloneable with the original sensor ID and put in the same position.
2. 98% COVERAGE: Featuring the latest and most comprehensive coverage of 98% OE sensors on the market, and up to 90% of North American, European and Asian vehicles, it nearly fits all types of wheels on the road.
3. EASY TO USE: The maximum sensor signal strength allows sensors to be easily programmed wirelessly even when they have already been mounted to the wheel. Moreover, the unique PRESS release valve design makes the manual sensor replacement much easier.
4. SOLID & DURABLE: Equipped with an automotive grade battery, a replaceable aluminum/rubber valve stem to withstand cold, hot and resistance corrosion, and a high-precision air valve to prevent air leakage, this sensor ensures superior stability and performance.
5. WARRANTY: Autel guarantees that the sensor is free from material and manufacturing defects for a period of 24 months or for 24,000 miles. Each sensor is marked with a series number to track the sensor quality from the factory to ensure that only the highest quality parts are installed.



Technical Specifications of the Autel MX-Sensor TPS218 Tire Sensor (315MHz+433MHz):

Complete Tire Pressure Monitoring System Solution
Autel is the only manufacturer to produce both TPMS sensors and easy-to-use TPMS tools to offer a truly complete TPMS solution.
Most Current Vehicle Coverage
More Compatible Tools & Sensors
Easiest To Use Tool Navigation
Quicker TPMS Repairs & Service
Screw Release(flexible angle)
98% Vehicles Coverage
Max Signal Strength
SAE Strandard
Low Weight
Battery Reliability



Autel MX-Sensor TPS218 Specifications Details:

Battery Life:4-6 years
Operating Temperature:-40°C to +125°C
Storage Temperature:-40°C to +35°C
Temperature Reading Range:-40°C to +125°C
Temperature Reading Accuracy:±5°C
Operating Frequency:315 MHz / 433 MHz
Pressure Monitoring Range:0 to 800 kPa
Pressure Reading Accuracy:±10 kPa
G Sensor Reading Accuracy:±15%
Transmission Power: 5-8 dBm
Battery:3.0 V
Dimensions (W x H x D):42.4 mm x 24.1 mm x 16 mm
Weight (Without Valve):12g

Packlist:

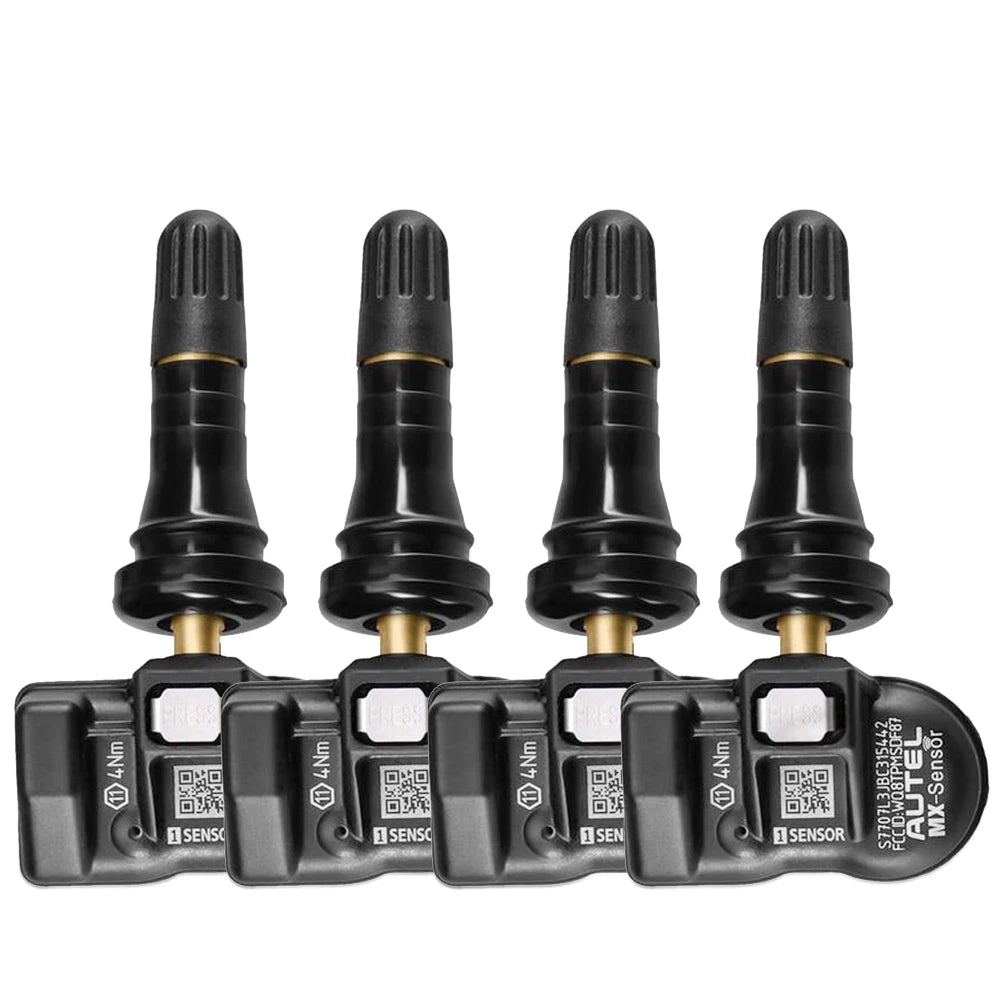

4*2in1 Rubber Sensors
